Vestax ENGINE MGU RE

Vestax ENGINE MGU RE

For the Vestax PDX-2000, PDX-2000MkII, PDX-2000MkIIPro, PDX-3000, PDX-3000MkII and PDX-3000 ANN, QFO Series or vintages models PDX-A1, PDX-A1s, PDX-A1MkII, PDX-A2, PDX-A2MkII, PDX-D3, PDX-D3s, PDX-D3MkII, PDT-5000, PDX-8000 turntables is intended this premium service repairs of PDX Engines with warranty; (letters "RE" means refurbished).

Code: VE891360010M012R
€ 149.00
Availability: in stock

 New product  Original Japan  Original parts  requires service knowledge     ENGLISH DATASHEET

PRODUCT DESCRIPTION:

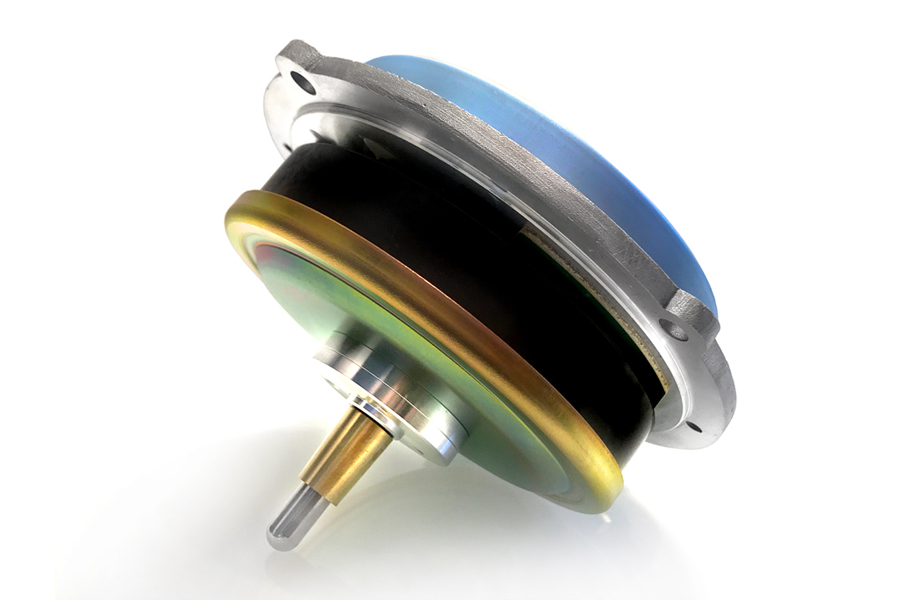

For Vestax PDX-2000 Series, PDX-2000 MkII, PDX-2300 MkII, PDX-3000, PDX-3000MIX, PDX-3000MkII, PDX-3000 30ANN and QFO Series turntables  is intended this service - professional repairs of PDX turntables Engines with warranty. Vestax Engine composed of a DC servo and Direct Drive motor with Quartz System. This type is also compatible with engine for vintages models Vestax PDX-A1, PDX-A1s, PDX-A1MkII, PDX-A2, PDX-A2MkII, PDX-D3, PDX-D3s, PDX-D3MkII, PDT-5000, PDX-8000 turntables. The monoblock unit  is equipped with a PCB board with connectors for easy connection to turntable electronics.

How does it work and what are the terms and conditions?

The PDX Engine must be mechanically all right, that is, there is no restriction on its ability to rotate. The most common defects that appear in the motors are the following: rotation instability, random stopping or changes in speed or direction of rotation and also slow or no start (after pressing the PLAY button). In that case, we can repair the PDX Engine successfully. Repairing this part is very demanding and requires special technologies that we have at our disposal. Before purchase pls. read this Vestax TechNote (PDF file).

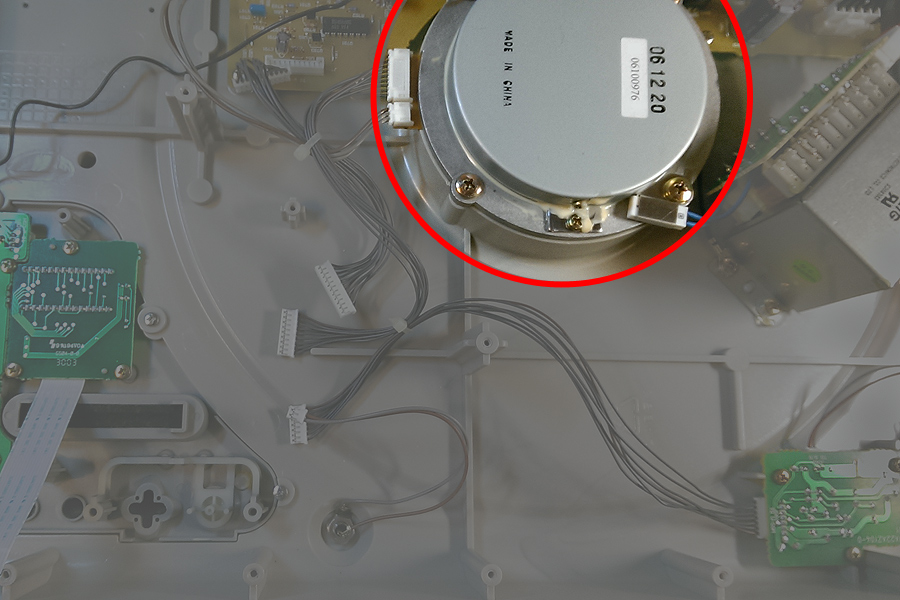

Simply send defective parts to our service center - the address will be notified to you in an email / confirmation of a successful order - where we will repair them. These parts can be easily removed from the PDX turntable - an experienced user can do it. Upon request, we will provide you with instruction (diagram of PDX parts) on how to safely remove the part from the turntable and successfully re-install it after repair. The duration of the repair depends on the current workload of the service center and can range from 2 to 3 weeks (the time required for the shipment is not counted). Return shipping via Economy parcel is free!

We guarantee if the repair (in very exceptional cases) is not possible, then we will refund you the full amount and the PDX Engine part back.

infoidea Tip: If you are unsure about your choice, consult our customer support before purchasing this part.

info-blue-icon.png Notice: This is service - repairs of Vestax PDX engines with warranty (part will be refurbished).

info-txt-icon.png Info: This premium service includes shipping the repaired part back to you free of charge!



KEY DESCRIPT:

  • Vestax services - repairs of PDX turntables engines with warranty (service of Engine monoblock / unit DC servo & DD motor with Quartz System
  • for Vestax PDX-2000, PDX-2000MkII, PDX-2000MkII Pro, PDX-2300MkII, PDX-2300MkII Pro, QFO, QFO-LE, QFO-LE DX Series turntables
  • also for last models of turntables Vestax PDX-3000 Series, PDX-3000MIX, PDX-3000MkII, PDX-3000 30th ANN Ltd. Series
  • for vintages models PDX-A1, PDX-A1s, PDX-A1MkII, PDX-A2, PDX-A2MkII, PDX-D3, PDX-D3s, PDX-D3MkII, PDT-5000, PDX-8000
  • for use only for experienced users, for other users it is recommended to entrust replacement of the unit to specialists
  • professional repairs of PDX turntables Engines with services warranty
  • this repair is very cheaper than buying a new Vestax PDX Engine



PURCHASE INSTRUCTIONS:

  • step 1: you order this premium service for Vestax PDX Engine repair
  • step 2: send PDX Engine for repair to our service department
  • step 3: we'll fix your PDX Engine and return part back
  • finally a bonus gift: return shipping will be free *
  • coupon for *) use this: VX-RFBS-PART-MG
  • shipping free valid via Economy parcel



TECHNICAL PARAMETERS:

Specification PDX-2000, PDX-2000MkII, PDX-2000MkII Pro, PDX-2300MkII, PDX-2300MkII Pro, PDX-3000, PDX-3000MIX, PDX-3000MkII, PDX-3000 30th ANN, QFO, QFO-LE, QFO-LE DX, PDX-A1, PDX-A1s, PDX-A1MkII, PDX-A2, PDX-A2MkII, PDX-D3, PDX-D3s, PDX-D3MkII, PDT-5000, PDX-8000
Type DC servo + motor DD Quartz System / PCB board with MOLEX JTS connectors 2.0
Connection connectors CN1/CN2 MOLEX JTS 2.0
Fastening 4 screws M8 x 24 (metric thread)
Dimension-M ø 117 x 56 mm (motor DD Quartz Sytem)
Dimension-S ø 98 mm x 21 mm (DC servo)
Weight 1,20 kg (netto)
Accessories assembly and wiring instructions



DOWNLOAD:

PDF soubor Vestax TechNote - PDX engine (1,5 MB)
