Home » E-shop » Spare parts for turntables » Vestax ASTS tone arm

Vestax ASTS tone arm

Vestax ASTS tone arm

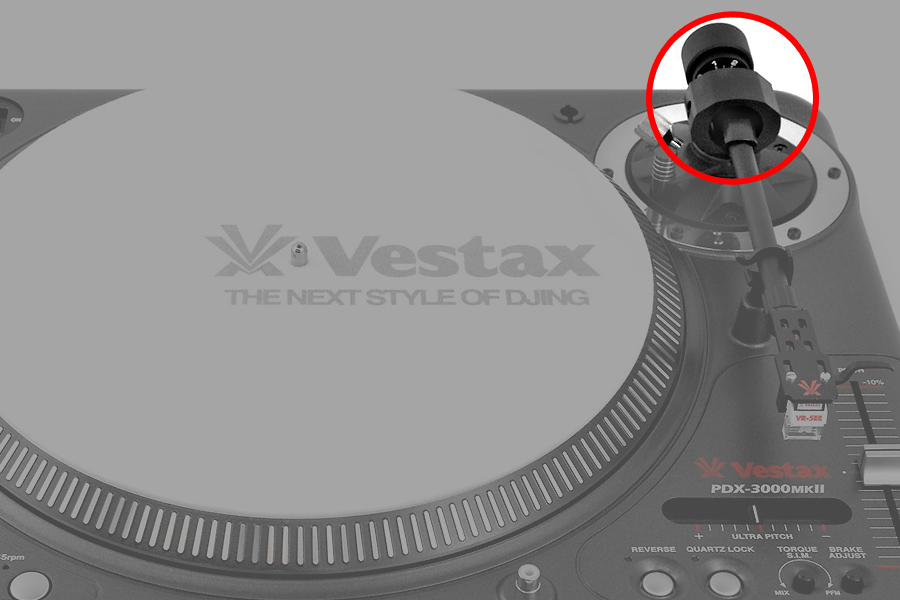

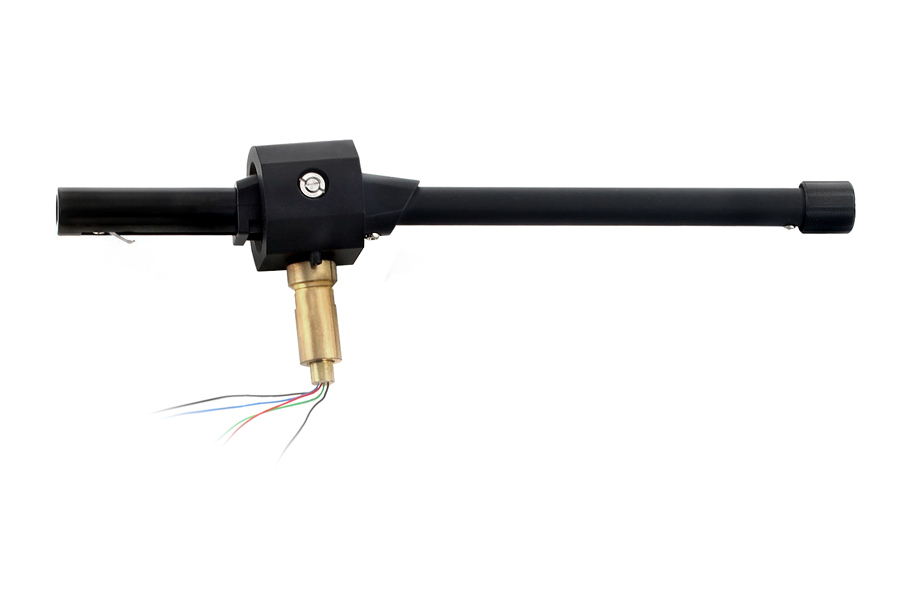

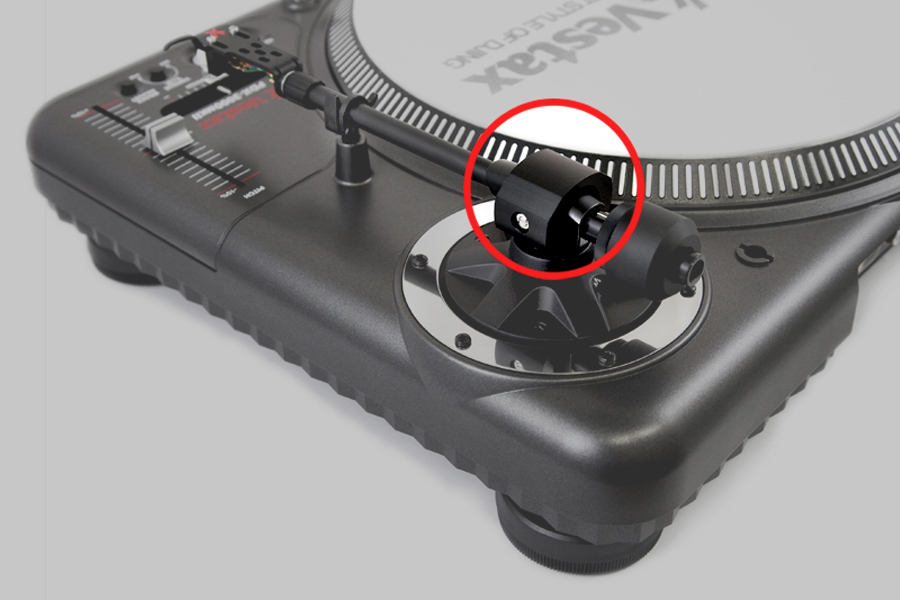

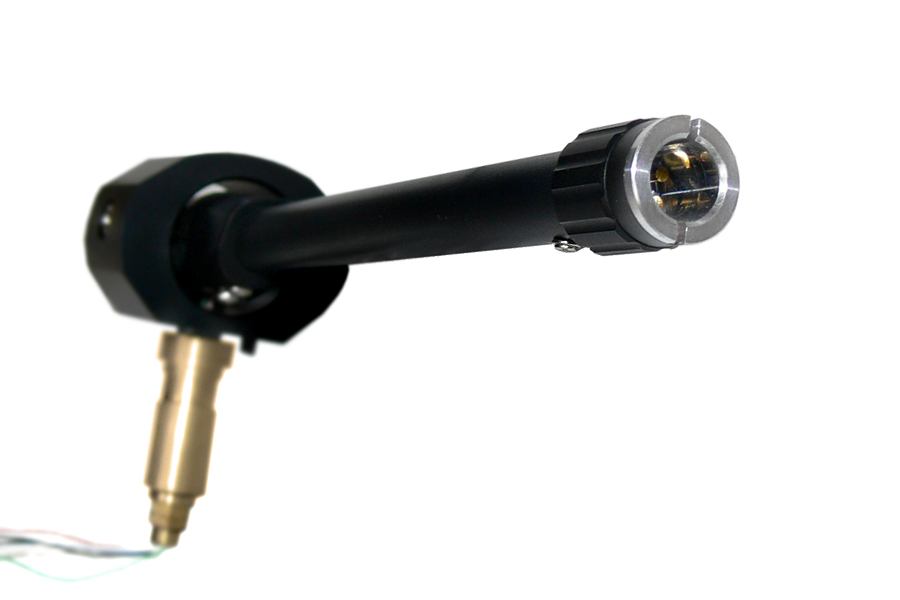

Custom made part. For Vestax PDX-2000 or PDX-3000 Series turntables, the A.S.T.S. straight tonearm with joint, wiring and bayonet thread for headshell. Custom made part.

Code: 4516890146300
€ 239.00
Availability: at the supplier 2 pc

Expected:

December 2024

 Original Japan  Originální náhradní díly  Doporučeno využít autoriz.servis  picto_temp-notavaible.png  picto-expected-date-1224.png   ENGLISH DATASHEET

PRODUCT DESCRIPTION:

For the Vestax PDX-2000 or PDX-3000 Series turntables is tone arm of system A.S.T.S. in black matte finish design with tone arm hinge, wiring installed and bayonet thread for headshell mounting. The tone arm is supplied separately without weights and without headshell (these can be ordered separately). For use only by Vestax authorized repairers and authorized service centers.

infoidea Tip: If you are unsure about your choice, consult our customer support before purchasing this part.

info-blue-h-icon.png This is only custom made premium part ! Production takes approx 5 ∼ 6 months.



KEY FEATURES:

  • replacement direct turntable tone arm of A.S.T.S. system (linear trajectory) in black matte finish design
  • precision mechanics, joint with industrial CVD axial bearings, soft radial brass bushing
  • the cabling includes four flexible pure silver / audiophile copper hybrid conductors
  • designed for Vestax PDX-2000 / PDX-3000 / PDX-3000Mk2 Series turntables
  • we recommend a professional service to install the tone arm



TECHNICAL PARAMETERS:

Specification PDX-2000, PDX-2000MkII, PDX-3000, PDX-3000MkII, QFO-LE, QFO-LE DX
Tone arm binary brass in combination with carbon-aluminum alloy, anodized, black matte finish design
Mechanical precision joint with thrust bearings fitted with industrial CVD, radial brass housing
Connection 4 flexible hybrid conductors made of pure silver / audiophile copper, 4-pin HS bayonet connector
Dimension stem arms ø 10 x 204 mm / axial tone arm joint ø 11 x 26 mm
Weight 115 g (netto)
Contents assembly instructions for wiring the tone arm



DOWNLOAD:

PDF soubor Vestax original parts - manuál (0 kB)



PHOTOGALERY:



Currency Converter

You will immediately find out - how much you will pay. Enter the amount of the product price in the  USD / EUR - $ / €  field and you will get the conversion to your local currency. This services provided by FreeCurrencyRates.com.

FreeCurrencyRates.com

Add comment

Name of the capital city of Japan?

The highlighted fields are mandatory.

Comments - Overview

  1. Aviability (Tony trang, 24 Sep 2019 17:08:47) Reply | Show replies

    Yo !
    Please tell me if the arm was in stock !

    Merci

    1. Re: Aviability (Vestax Admin, 25 Sep 2019 16:03:27) Reply

      Hi, this item currently out of stock, we expect the last pieces during 5. - 15. October.

  2. Tone arm (Daniele Quasini, 6 May 2020 10:49:15) Reply | Show replies

    The part is ok for the pdx 3000 mix?

    1. Re: Tone arm (Vestax ADMIN, 6 May 2020 13:59:24) Reply

      No; this type is recommended only for PDX-3000MkII, QFO LE or PDX-2000 Series with orig. straight arm (because PDX-3000MIX has a different tone arm base).

  3. Availability ? (Julien, 31 May 2024 18:27:24) Reply | Show replies

    Hello from France,
    Would you be able to give me an estimation of the delay if I order this part?
    Aside of this, if I would try to fix my arm myself (I guess I just need to change a wire), would you be willing to share a doc for helping me to disassemble all parts of the arm properly?
    Thanks in advance

    1. Re: Availability ? (Vestax ADMIN, 4 Jun 2024 15:27:24) Reply

      Hello. Providing a Vestax service manual for PDX turntables would not be a problem, we will provide it to you. Unfortunately, at the moment we cannot estimate the date when the part will be back in stock. These parts sold out very quickly and currently it is not possible to estimate when the new arms will be produced. It can take even more than half a year.
