Vestax VK-2300 PRO KIT (d)
|
|
|
|
|
PRODUCT DESCRIPTION:

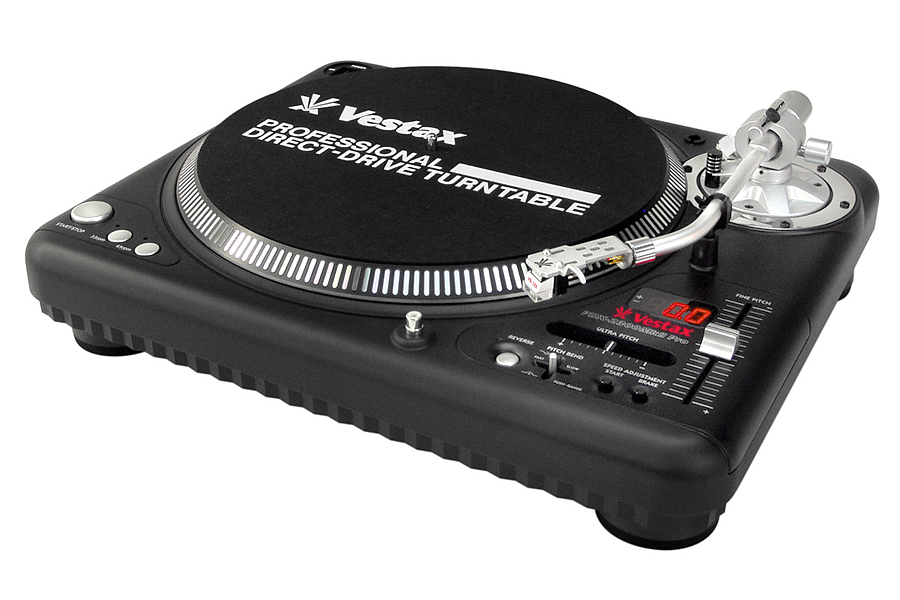

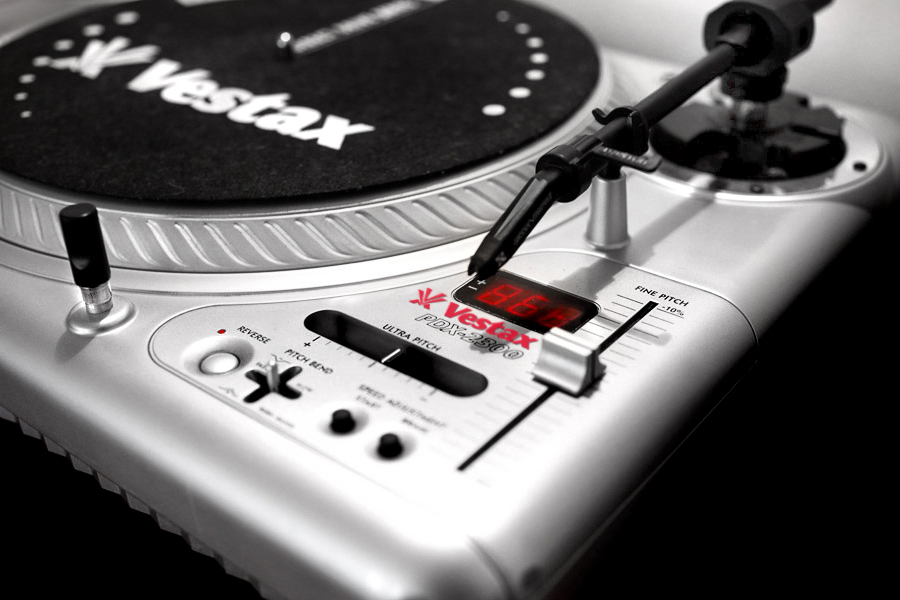

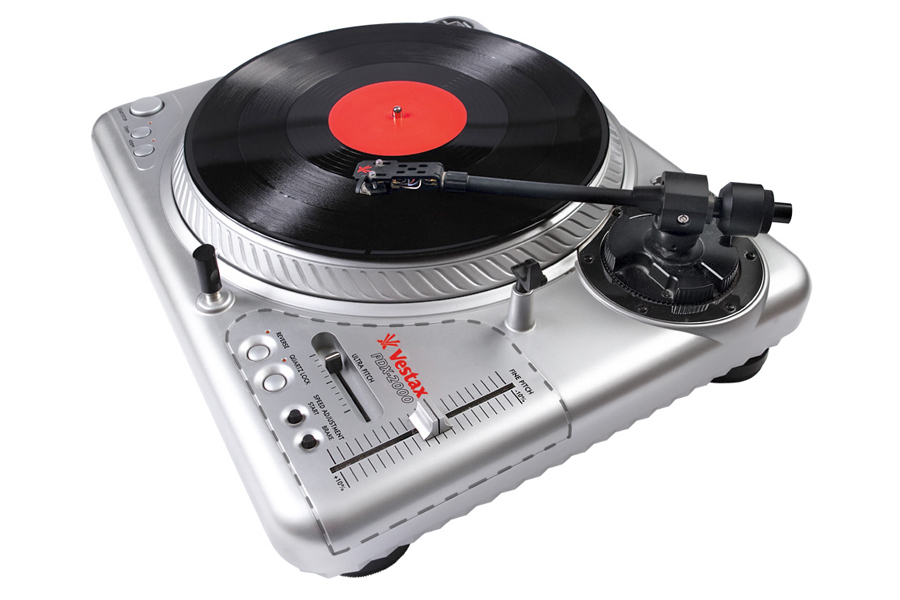

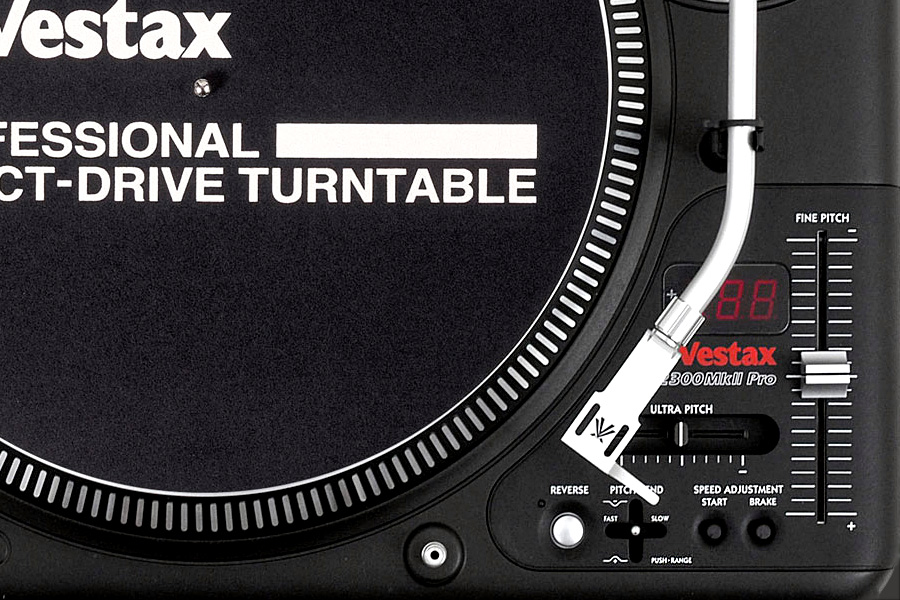

The Vestax VK-2300 Pro KIT mounting hardware is designed to upgrade the Vestax PDX-2000 Series turntable controls to a more modern version, featuring better controls, than the legendary Vestax PDX-2300 Series turntables. Enhanced pitch control, fast and accurate beat matching adjustment with a 100mm ± 10% fine pitch fader. Ultra pitch control with a ± 50% control fader. Combined the total amount you can adjust the pitch by is a huge ± 60% pitch. Furthermore, with the pitch bend joystick, you can quickly push or pull the pitch for smooth mixers or dynamic effects. Digital Pitch Display large format showing the current pitch setting, allows you to accurately set the pitch or when needed to, make adjustments perfectly.

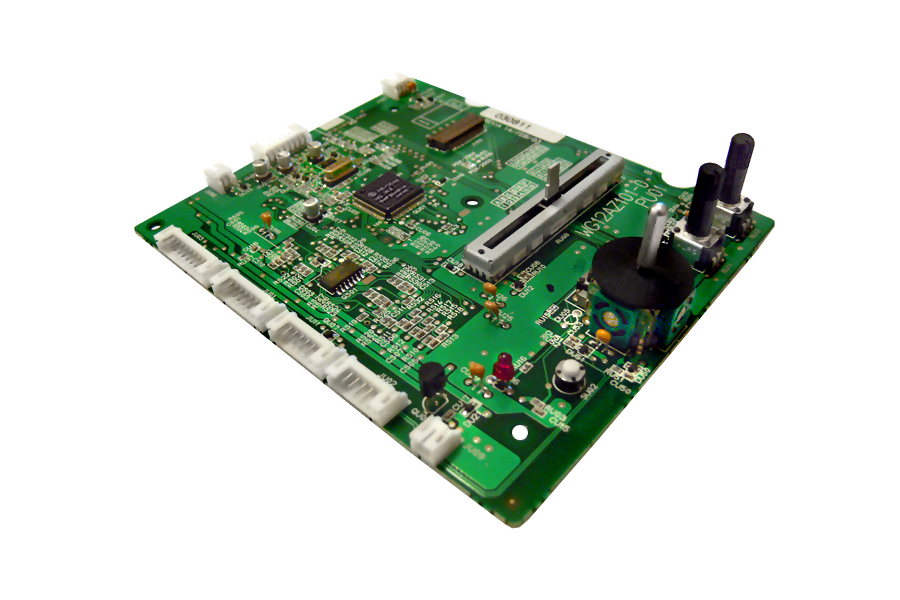

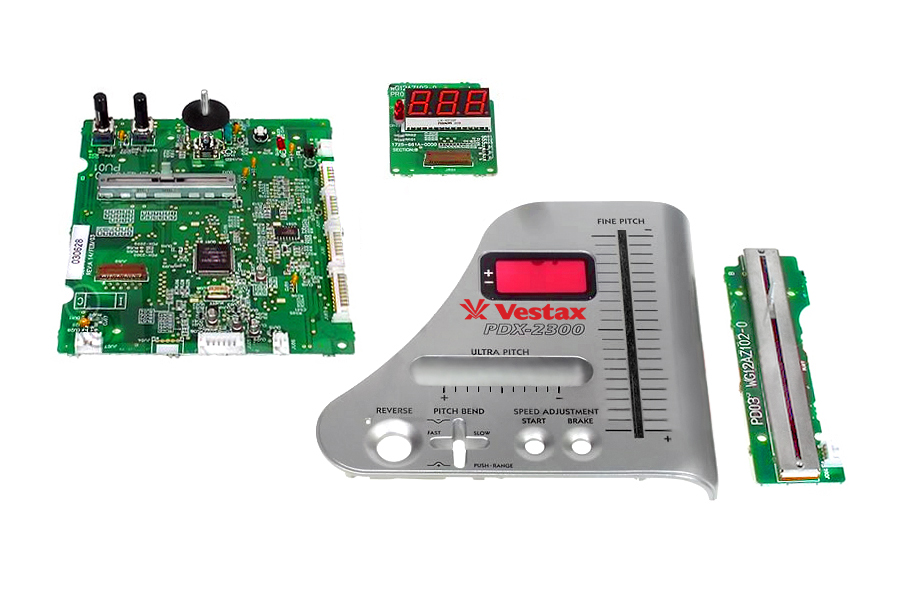

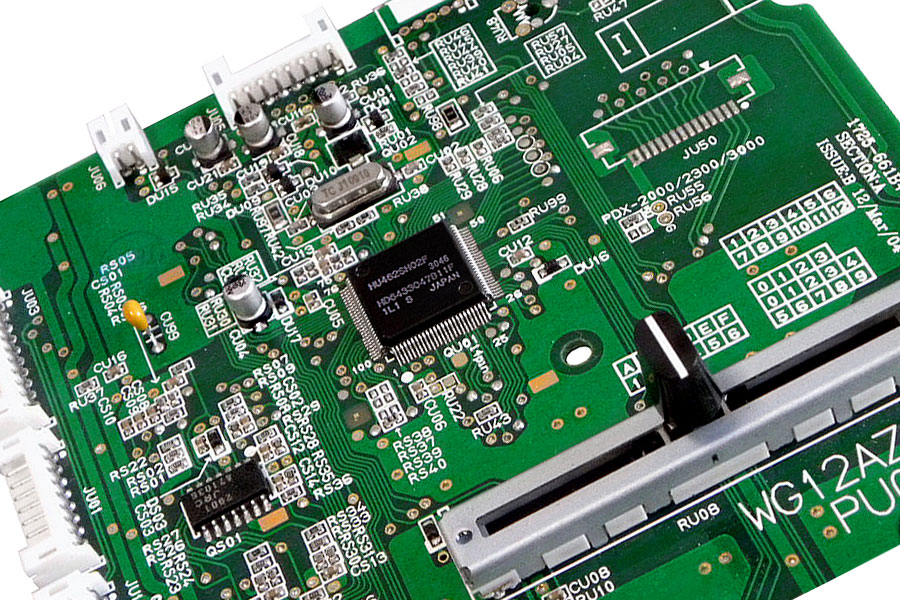

The Vestax VK-2300 Pro KIT includes four basic parts to upgrade your PDX-2000 Series turntable. The VK-2300 Pro KIT includes a PCB motherboard incl. several Japanese CPU´s with control electronics that features a 4-D joystick (Pitch Bend & Ultra Shift) to promptly correct pitch settings in steps of ± 1%, ± 2%, ± 3%, ± 6%, or instantly ± 50 %. There is also a 45mm ± 50% ultrapitch fader and two rotating soft faders with electronic engine torque control and turntable torque adjustment, as well as an engine reverse button with LED indication. In addition, the KIT contains big alphanumeric three-digit LED display, which indicates the instantaneous pitch value with the accuracy of one decimal place or the selected turntable turntable. Another part is a single PCB plate fitted a 100mm linear pitch fader ALPHA™ with range ± 10% RPM. Together, pitch control can be adjusted to ± 60% RPM. The VK-2300 Pro KIT also features an original silver-coated printed panel with holes for tension faders (fitted with anti-dust screens) rotary potentiometers and joystick Pitch Bend. The opening for the LED display is fitted with a protective acrylic red glass.
Notice: If you are unsure, consult our customer support before purchasing.
KEY FEATURES:
- HW KIT designed to upgrade Vestax PDX-2000 Series turntable controls to a more modern version of the PDX-2300 Series
- contains four PCB motherboards with electronics, pull pitch faders, swivel faders and 4-D joystick

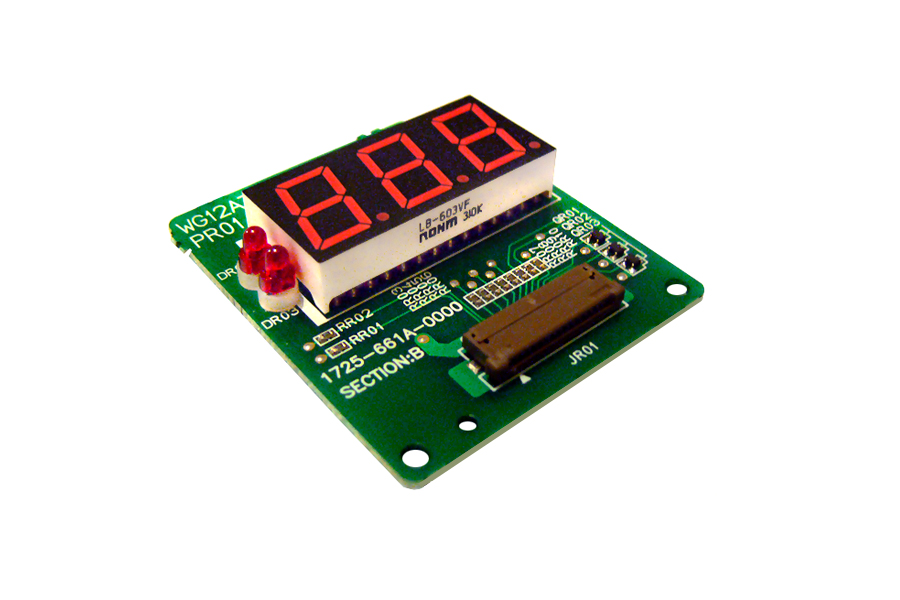

- alphanumeric three-digit LED display showing the current pitch value of RPM or selected speed
- 4-D joystick (Pitch Bend & Ultra Shift) to correct pitch control ± 1% to ± 6%
- 100mm linear pull pitch fader ± 10% / 45mm ultrapitch fader ± 50%
- overall pitch control level change RPM up to ± 60%
- compatible with all Vestax PDX 2000 Series
- contains detailed assembly instructions
TECHNICAL PARAMETERS:
Specification | HW KIT for assembly to PDX-2000 Series (viz assy.manual) |
Regulation 1 | engine torque / acceleration speed |
Regulation 2 | setting point shot torque electric brakes |
Pitch | ±10% / fader 100 mm |
Ultrapitch | ±50% / fader 45 mm |
Pitch Bend / Ultra Shift | krokově ±1% / ±2% / ±3% / ±6% |
Controll Pitch Bend / Ultra Shift | 4D joystick |
Power | internal by power source of PDX-2000 |
Connectors | integrated Phoenix / JTS / P2 |
Dimension | 124 x 138 x 26 mm |
Weight | 320 g |
DOWNLOAD:
Vestax VK-2300Pro KIT - primary user manual (1,70 MB)
Vestax VK-2300Pro KIT - assembly brochure (100 kB)
