Minebea motor 17PM-K011-04V

Minebea motor 17PM-K011-04V

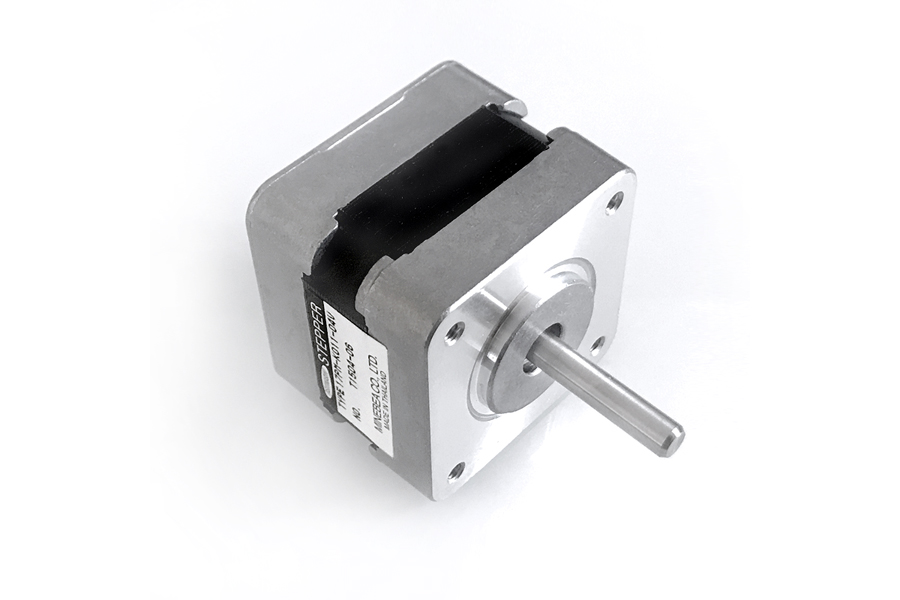

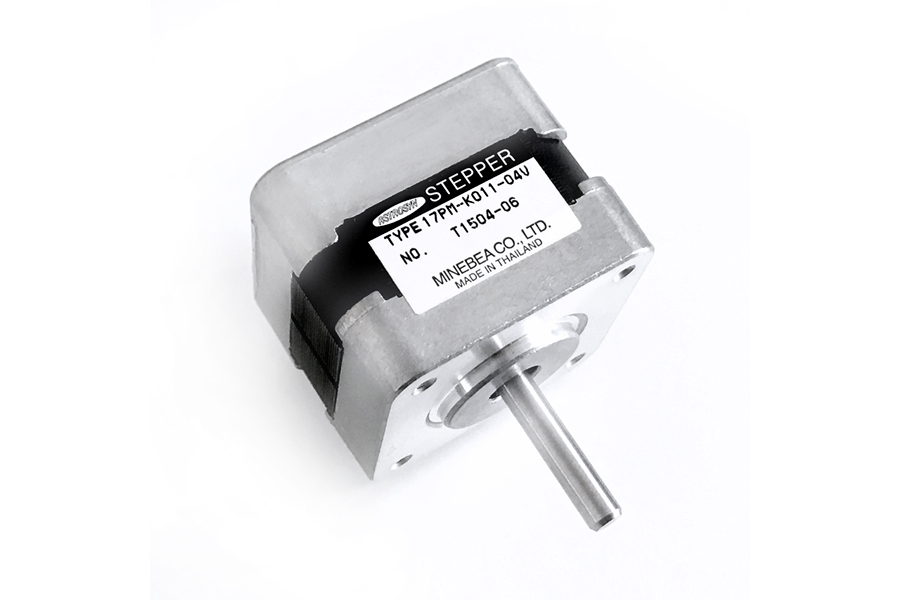

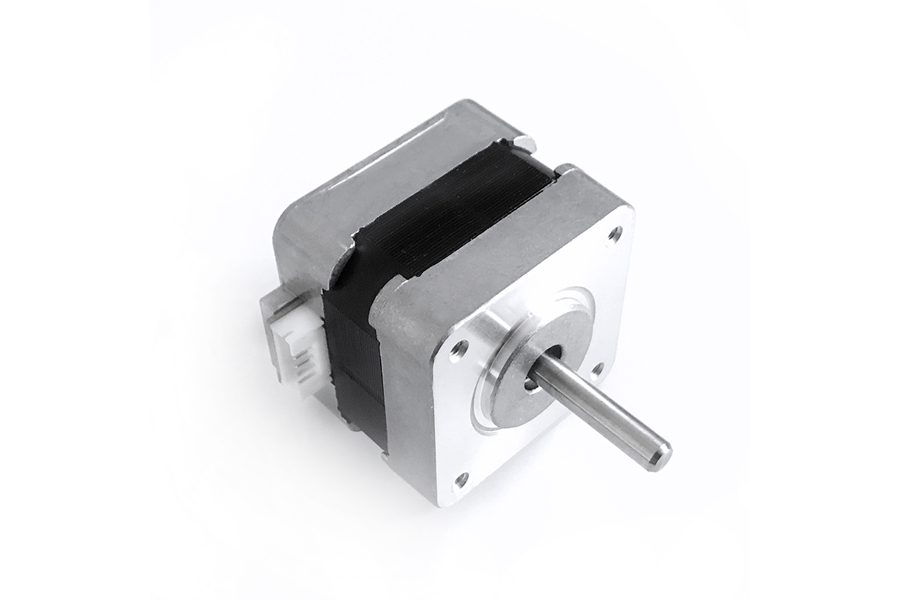

Replacement original stepping hybrid motor Minebea 17PM-K011-04V (Matsushita) Series with step angle 1,8 deg from Minebea Mitsumi Inc. factory.  Equipped for the intelligent lighting technology or for AI technology (robots). This is time and quantity limited offer - sale of stock.

€ 47.41 € 49.90
5%
Availability: in stock

 Original Japan  picto_top-produkt.png  Doporučeno využít autoriz.servis   ENGLISH DATASHEET

PRODUCT DESCRIPTION:

For the intelligent lighting technology or for AI technology (robots)  are equipped  replacement original stepping hybrid motor Minebea 17PM-K011-04V (Matsushita) Series with step angle 1,8 deg from Minebea Mitsumi Inc. factory.  Stepping motors rotate at fixed angles with digitally controlled electronic pulses and they are able to start, stop and position with good control characteristics. Hybrid-type stepping motors consist of a rotor with permanent magnets and magnetic bodies, and by using ball bearings they can perform highly precise and reliable motions. Stepping motors can be used in wide range of applications, such as copy machines, multifunction printers, medical equipment, semiconductor manufacturing equipment, factory automation equipment, robots and other industrial equipment.

For use only by authorized repairers and authorized service centers. It is recommended to entrust replacement of the unit to specialists. Detailed technical specifications see datasheet (PDF file) link below. Note: Torque/Speed characteristics are for reference only and it may change when operated at different drive conditions.

infoidea Tip: If you are unsure about your choice, consult our customer support before purchasing this part.



KEY DESCRIPT:

  • original  hybrid stepping motor Minebea 17PM-K011-04V (Matsushita) Series with step angle 1,8 deg
  • 200 steps per revolution (50 magnetic steps) and axis 24 mm
  • uni polar standard type, power voltage 12V / 0,4A
  • time and quantity limited offer - sale of stock



TECHNICAL PARAMETERS:

Specification Hybrid stepping motor Minebea 17PM-K011-04V
Type UNI POLAR 12V / 0,4A
Connection 6PIN connectors JST S6B-PH-K-S-2.2
Torque 205,9 mN / m (2100 g / cm)
Step angle 1,8 ° // => 200 steps per turn (50 magnetic steps)
Connection 6PIN connectors JST S6B-PH-K-S-2.2

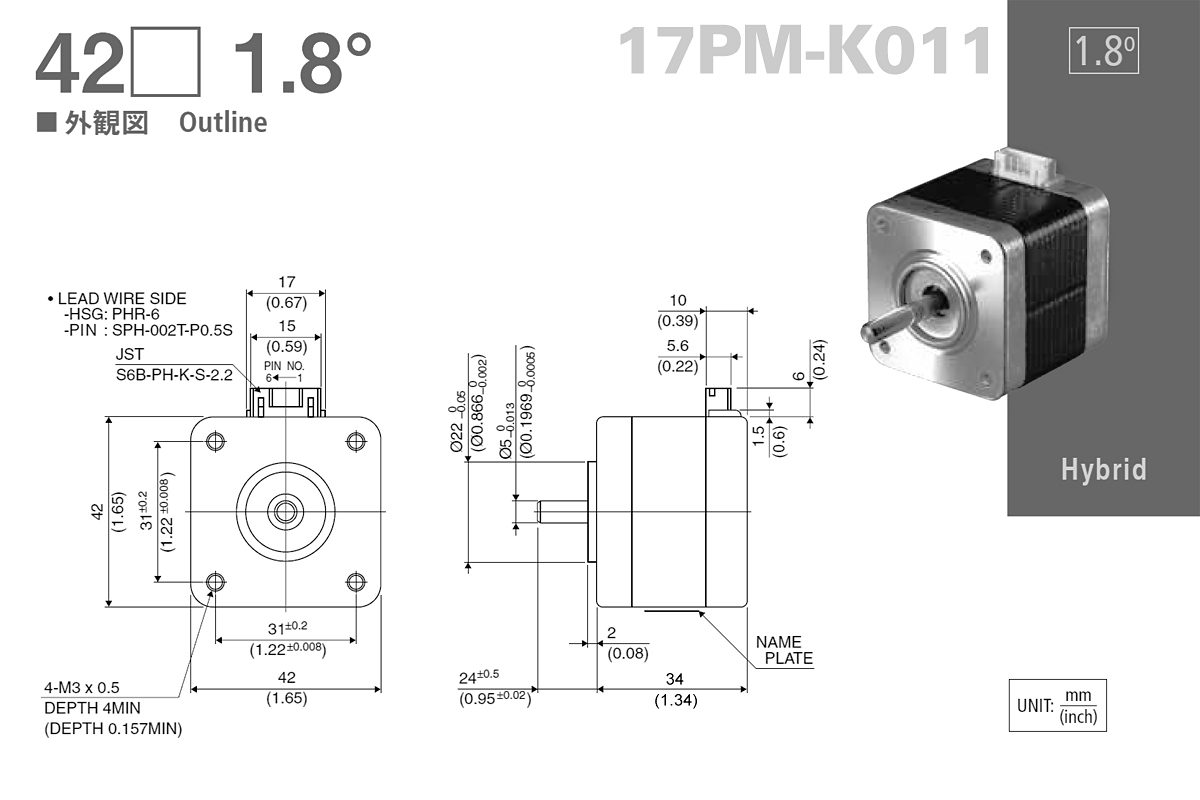

Lenght 34 mm (detail see drawing)
Outer diameter 42 mm
Axis 24 mm
Weight 200 g (netto)
Accessories assembly and wiring instructions



DOWNLOAD:

PDF soubor Minebea 17PM-K011- manual (312 kB)



PHOTOGALERY:
