Vestax ALPS™ slide faders

Vestax ALPS™ slide faders

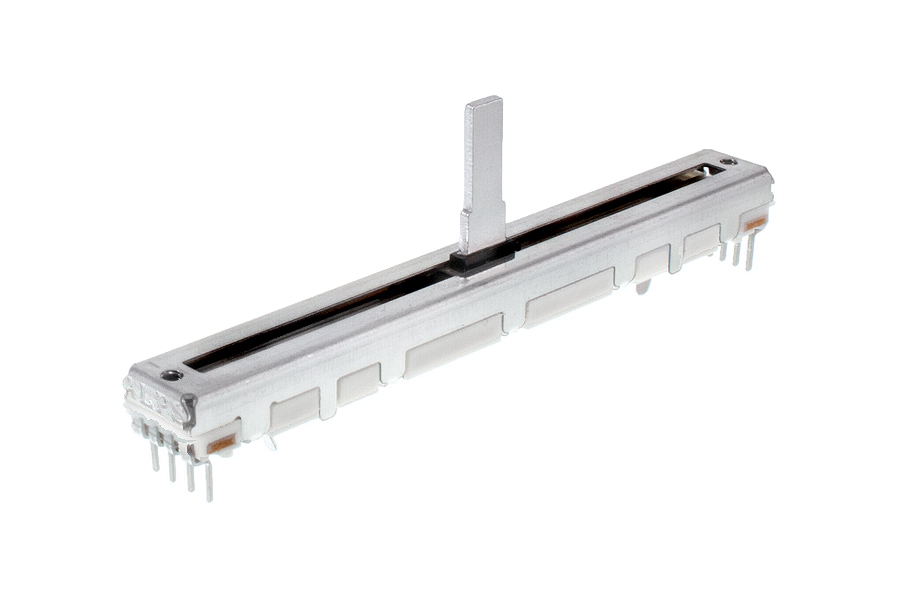

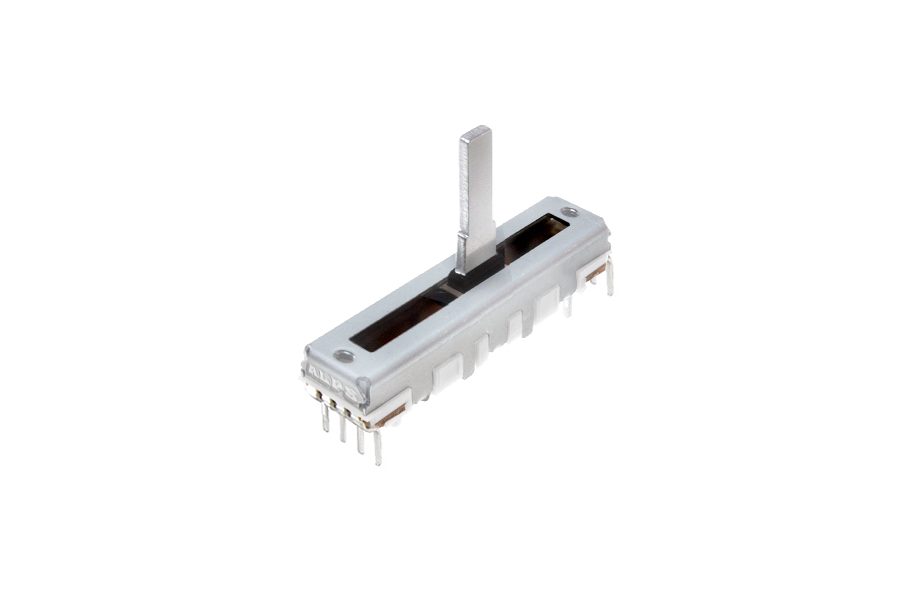

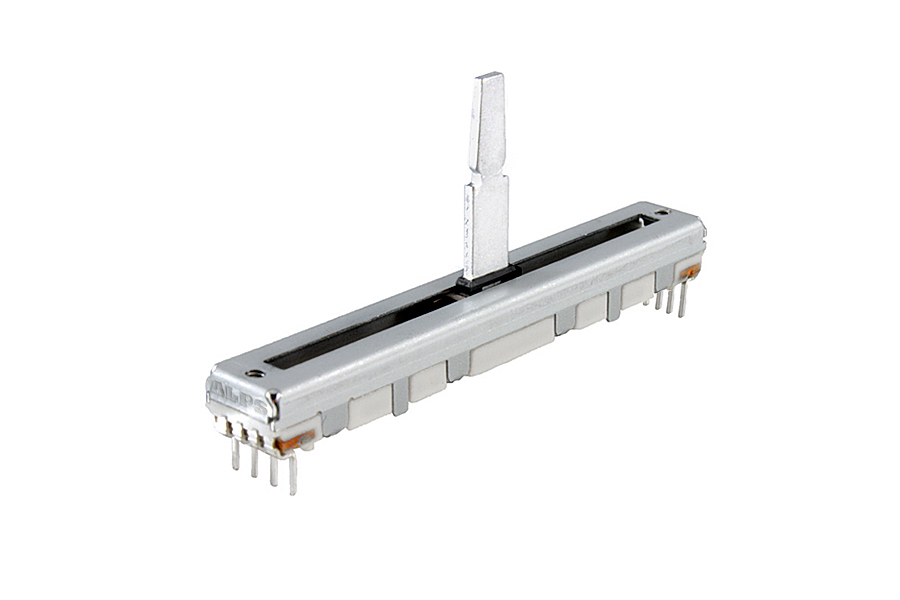

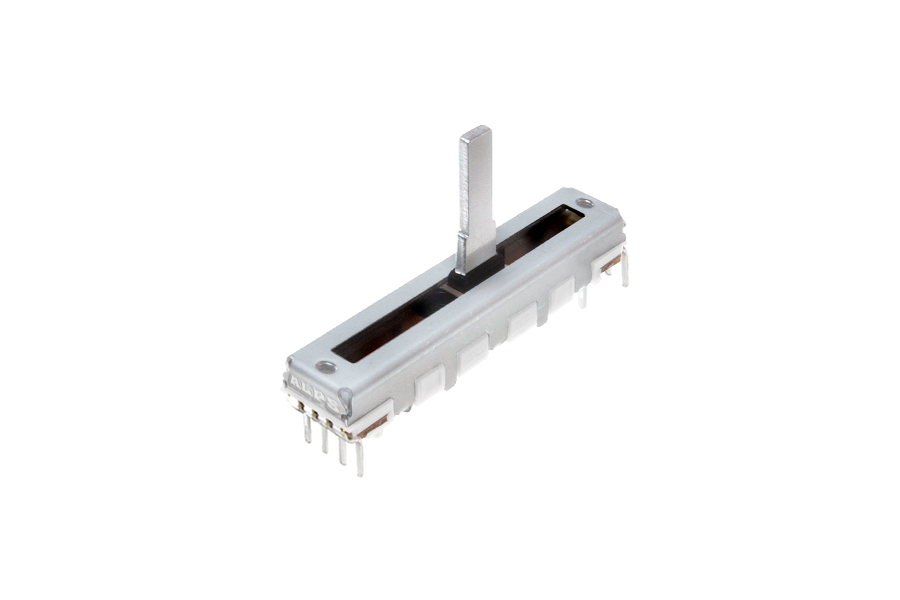

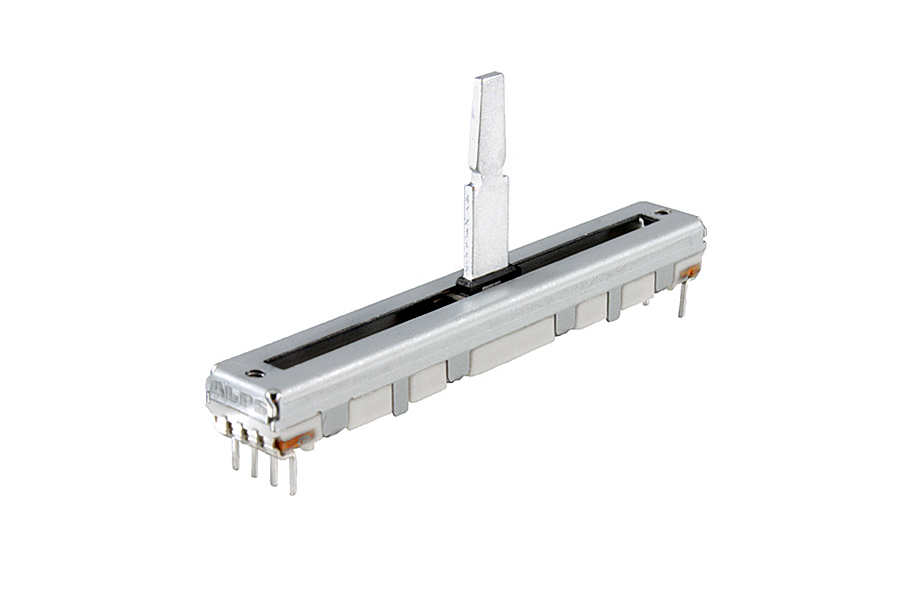

Original parts Vestax ALPS™ slide faders, variants 60 / 45 / 30 / 20 mm (size of travel). Here you will find only faders not listed in separate store sections (Input faders, Crossfaders). Original replaceable faders for Vestax mixers, MIDI controllers, sound cards and other products. Parts by ALPS™ Alpine Japan.

Variants:
Code: VRS000201M
€ 27.90
Availability: in stock

 Original Japan  Originální náhradní díly  Parts from Service Vestax
Currency Rates Today
1 $ CZK
1 € EUR CZK

PRODUCT DESCRIPTION:

Original parts Vestax ALPS™ slide faders, variants 60 mm / 45 mm / 30 mm / 20 mm (size of travel)  for mixers, MIDI controllers, sound cards, and other Vestax devices. To choice the desired part select "variants option". Atypical spare parts or non-standard services replaceable parts, ordered bespoke (for specialized services Vestax products). The manufacturer strongly cautions: installation of such a non-standard services replaceable parts requires professional competence.

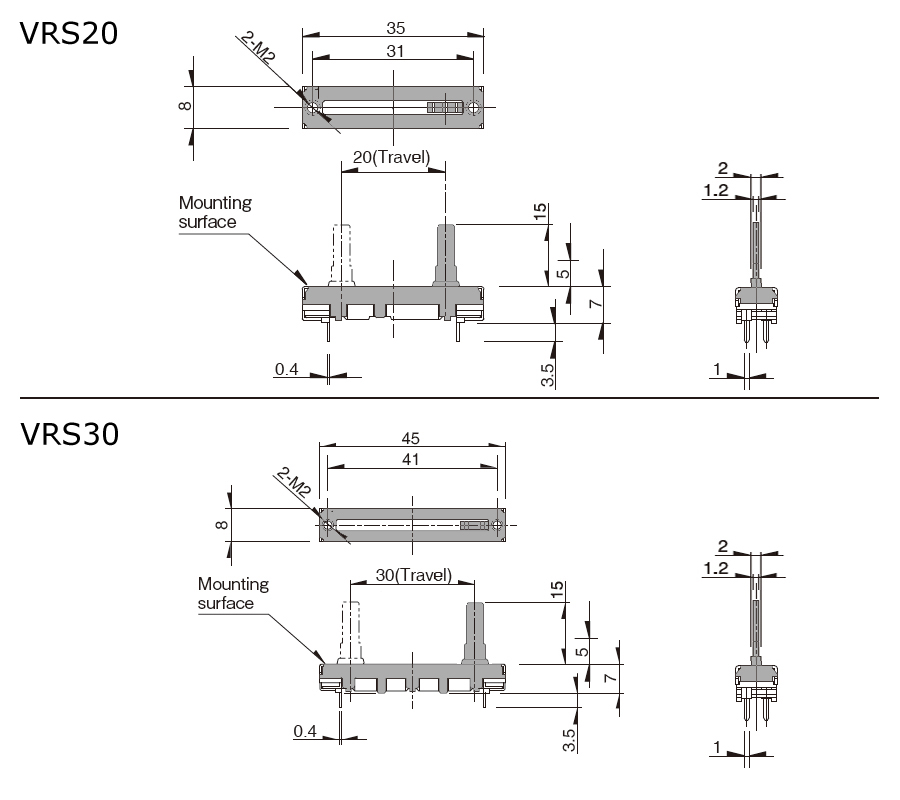

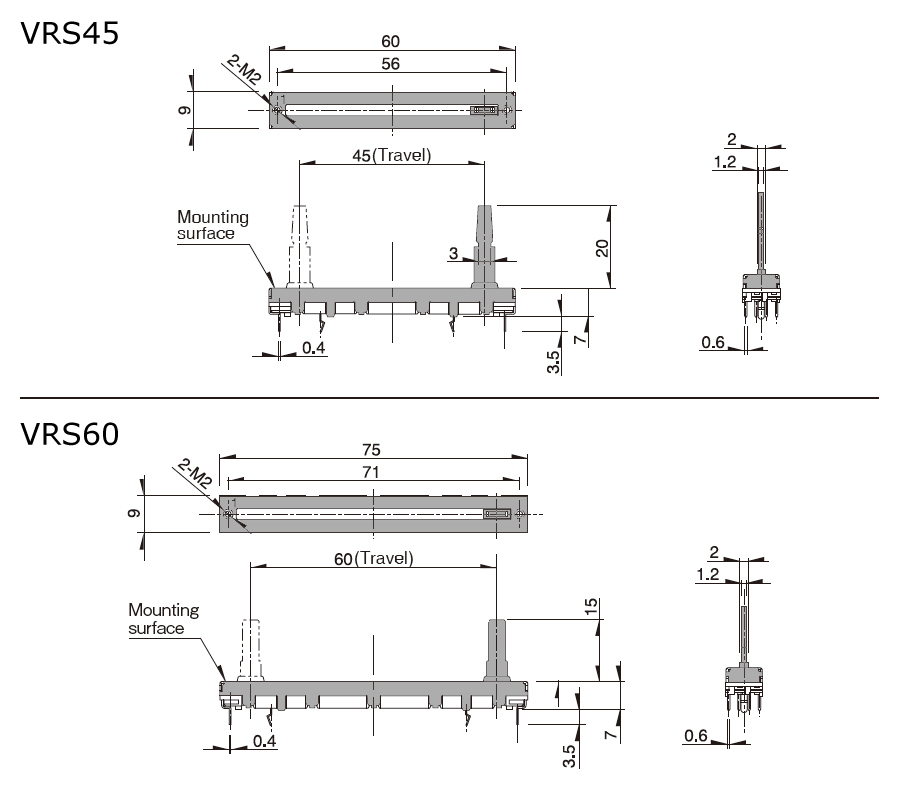

Technical drawing of Vestax ALPS™ slide faders VRS type are available also here: VRS45/60 faders and VRS20/30 faders. Other drawings are available in the technical library or upon request on Technical Support.

Our technical support will tell you based on your inquiry the type (number of code part and variant) you need to choose. These are original Japanese spare parts ALPS™ (Alpine) JAPAN or related legendary Japanese electronic companies that supplied premium electronic components for the Vestax Corporation factory.

infoideaCaution: use only genuine original Vestax spare parts. Otherwise, the device may be permanently damaged!

infoideaNotice: installation of such a non-standard services replaceable parts requires professional competence!



KEY FEATURES:

  • original parts Vestax ALPS™ Japan slide faders - genuine replaceable spare part of Vestax products for specialized services
  • atypical or non-standard services replaceable parts, ordered bespoke, directly for specialized Vestax services
  • top quality and guaranteed full compatibility all original replaceable parts made by Vestax ALPS™ Japan
  • variant VRS - SLIDE fader - RS Super Slide / NoRE single or dual unit / travel L=45 mm or 60 mm
  • variant VRS - SLIDE fader - RS Super Slide / NoRE single or dual unit / travel L=20 mm or 30 mm
  • for check compliance of product  (value) next specify in ORDER in column NOTE
  • NoRE = number of resistor elements: single (MONO) / dual (STEREO)
  • L = lenght of travel slide fader: 45 / 60 / 20 / 30 mm



TECHNICAL PARAMETERS:

Variant Type of fader NoRE L (travel)
VRS45M SLIDE fader - RS Super Slide single 45 mm
VRS45S SLIDE fader - RS Super Slide dual 45 mm
VRS60M SLIDE fader - RS Super Slide single 60 mm
VRS60S SLIDE fader - RS Super Slide dual 60 mm
VRS20M SLIDE fader - RS Super Slide single 20 mm
VRS20S SLIDE fader - RS Super Slide dual 20 mm
VRS30M SLIDE fader - RS Super Slide single 30 mm
VRS30S SLIDE fader - RS Super Slide dual 30 mm



DOWNLOAD:

PDF soubor Vestax Power Supply Unit - manual (533 kB)
PDF soubor General table of Spare parts Vestax (349 kB)
PDF soubor Table of Compatibility CF, IF, RF, PSU Vestax (1,85 MB)
