Vestax CF-X2 KIT

Vestax CF-X2 KIT

Digital premium non-contactless crossfader CF-X2 KIT with twoo Core processor and highly sensitive magnetic sensors and mounting accessories for selected models of MIDI controllers and PMC mixers. Original factory assembled KIT.

Code: 4516184253201
€ 185.00
Availability: sold out

 Originální náhradní díly  Snadná montáž  Original Japan
Currency Rates Today
1 $ CZK
1 € EUR CZK

PRODUCT DESCRIPTION:

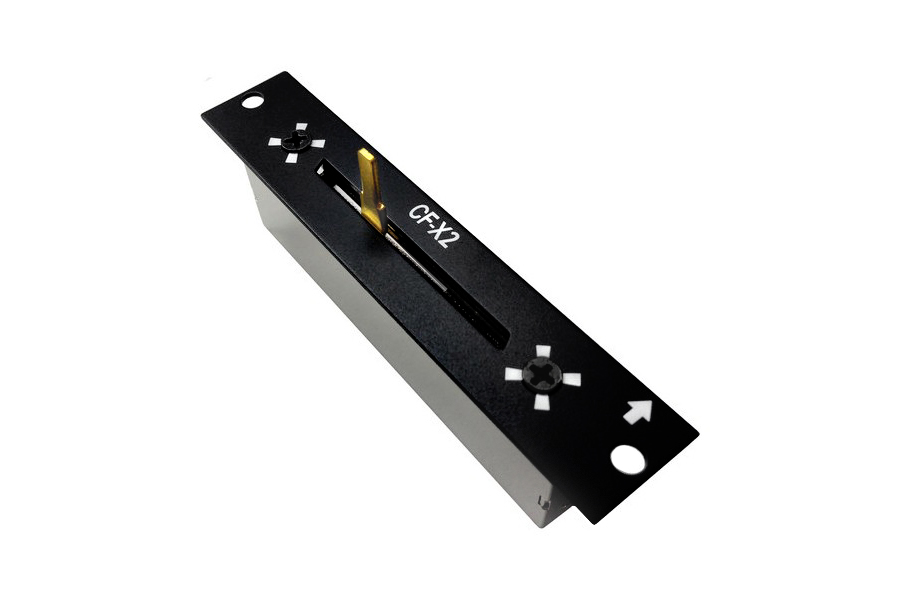

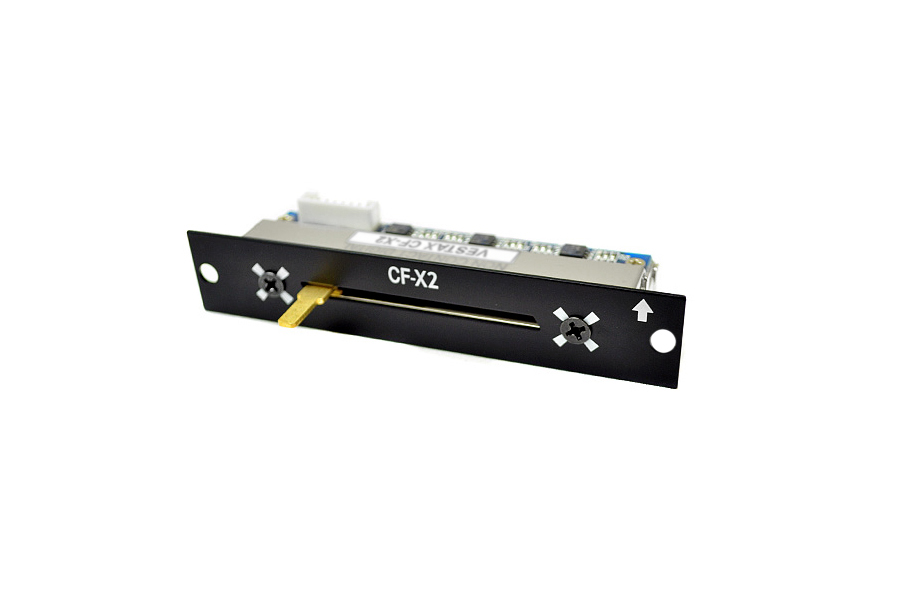

The CF-X2 KIT is a new generation contactless crossfader. The accuracy of the CF-X2 digital crossfader is based on the precise non-contact detection of the crossfader slider motion: the digital crossfader uses 4 magnetic sensors to detect the rider's torque and 6 high-precision sensors (3 on each side of the crossfader) that detect instantaneous slider position and built-in processor , which calculates the position of the slider using a very advanced algorithm.

The movable segment of the crossfader rider is constructed on the basis of the physical principles of mechanics with wide support points. This makes it possible to react precisely to the touch of the fingers by the user and the rider slides very smoothly on the support shaft. The shaft is polished with a special NANO technology, which provides the rider with an extremely smooth movement. The holes of the main movable segment of the crossfader slider are shaped into an octagram to minimize frictional forces between the movable segment of the slider and the guide shaft. This design also increases the life of the CF-X2 KIT compared to other crossfaders and does not allow dust or dirt to affect the smoothness of the rider's movement.

The metal cover CF-X2 KIT stabilizes the movement of the main moving segment of the crossfader and at the same time protects it against external interference. As standard, the CF-X2 KIT has metal stops. Users can easily install special flexible stops designed to absorb unwanted fader shocks when the rider hits the end of its path and stops it exactly where you need it. The package also includes an assembly KIT BR-300

infoidea Tip: if you are unsure, consult our customer technical support before purchasing.



KEY FEATURES:

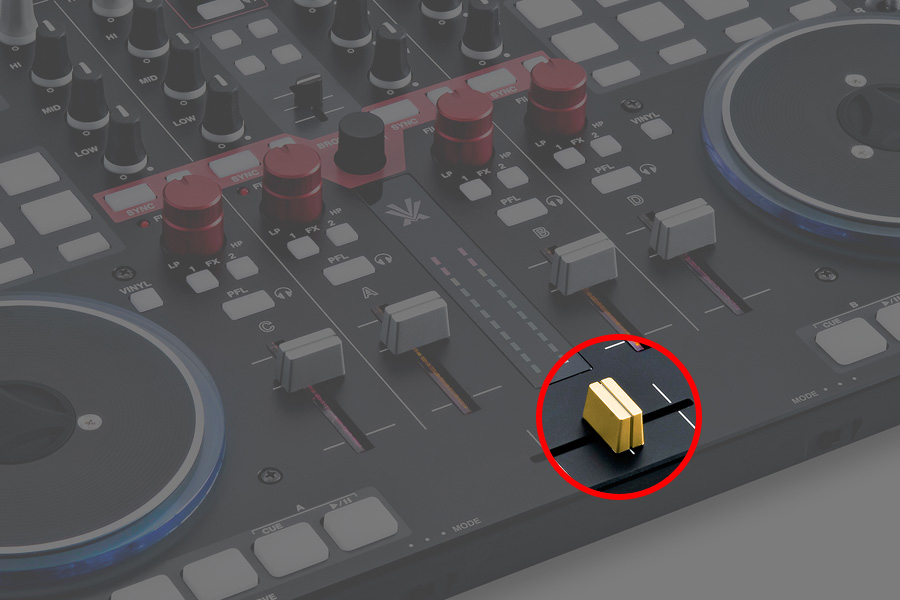

  • replacement original Vestax crossfader, designed for PMC-05ProIV or VCI-400 / VCI-380 / VCI-300MkII

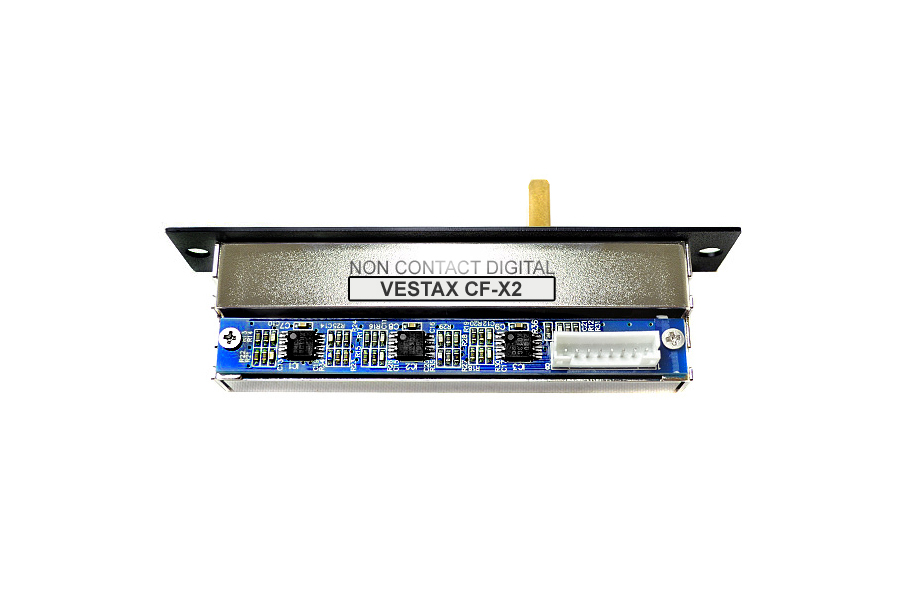

  • KIT for quick & easy user replacement by removal, mounted on PCB with DPS/JST/MOLEX connector
  • contactless technology brings reduced friction, less wear, smoother fader movement, long service life
  • precise quality and top parameters of original faders by ALPHA™ for Vestax Japan
  • fader is tested and meets the manufacturer's requirements
  • this is an premium original replaceable part of Vestax
  • options for upgrading factory-installed faders



DOWNLOAD:

PDF soubor Table of general spare parts Vestax (349 kB)
PDF soubor Table of compatibility parts Vestax (1,85 MB)



PHOTOGALERY:



PRODUCT VIDEO:
