Vestax DF-25/7 BUILDING KIT

Vestax DF-25/7 BUILDING KIT

Building KIT - original Japan DF-25 / DF-27 / DF-17 rotary fader KIT for professional mixers PMC / PCV Series. This is building KIT, which you assemble yourself by soldering. Contains 1 pc original ALPS™ Japan rotary fader, 1 pc faceplate, 1 pc large aluminium Vestax knob, 1 pair of nut and pad, 1 pc Vestax PCB mainboard, 1 pc JST/ PCB 5PIN 90°R angle connector, 1 pc FLAT cable with straight connectors. Intended for experienced users only.

Variants:
Code: 4516184250100
€ 69.00
Availability: in stock

 NEW PRODUCT  Originální

				náhradní díly  Doporučeno využít autoriz.servis  Original Japan   ENGLISH DATASHEET

PRODUCT DESCRIPTION:

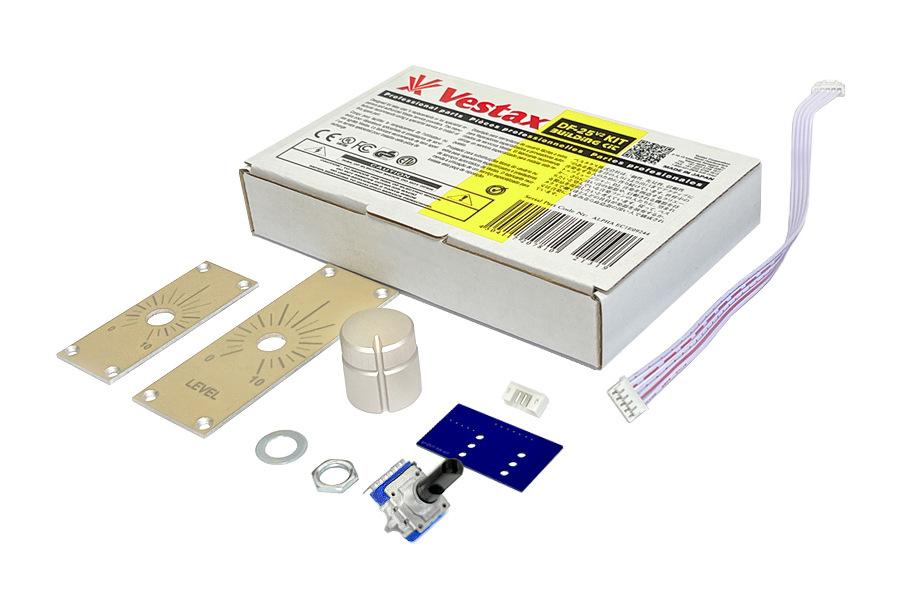

Building KIT - replacement original Japan DF-25 / DF-27 / DF-17 rotary fader KIT for professional mixers. This is building KIT, which you assemble yourself by soldering. KIT contains 1 pc high quality original ALPS™ Japan rotary fader, 1 pc  faceplate, 1 pc large aluminum Vestax DF-500 Series knob, 1 pair of nut and pad for fixing ALPS™ rotary fader on top cover panel (faceplate), 1 pc Vestax PCB mainboard, 1 pc JST/PCB 5PIN 90°R angle connector, 1 pc FLAT cable with JST 5PIN straight connectors. Intended for experienced users only, this building KIT must be assembled by soldering. Assembly is not complicated, it only requires skill when working with solder.

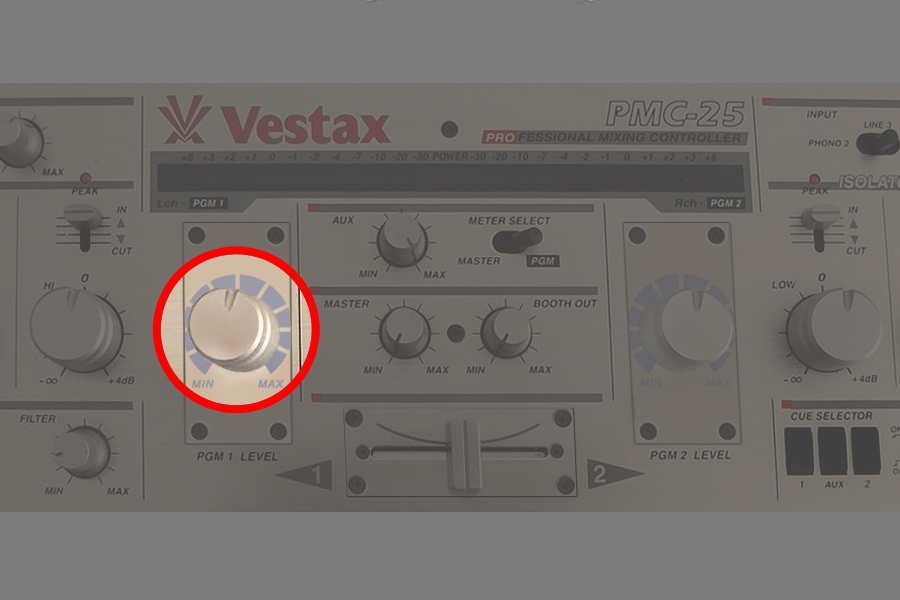

By assembling this building KIT you get premium Vestax DF-25 / 27 / 17 Pro KIT v2  ready for easy installation in mixers PMC-17A  / PMC-170A / PMC-25 / PMC-27 / PMC-27MK2 / PMC-250 / PMC-270A / PCV-175 / PCV-275 Series. Note: for using with PCV-175 / PCV-275 mixers must be original faceplate Vestax FP-175R / Vestax FP-275R or the front panel (faceplate) needs to be mechanical adjusted.

Vestax DF KITs in general are designed for easy user replacement instead of original factory INPUT CHANNEL SLIDE FADERS. They are suitable for some characters and styles of music mixing.

infoidea Tip: If you're not sure about the right choice, consult our customer support before your purchasing.

infoideaNOTICE: this building KIT designed for specialized service or experienced users.



KEY FEATURES:

  • by assembling this building KIT you get premium Vestax DF-25 / 27 / 17 Pro KIT v2
  • contains high quality & performance of Vestax ALPS™ JAPAN rotary fader
  • original Vestax large ALUMINIUM knob with marked line (groove)
  • cover panel, anodized gloss finish (faceplate size M for DF-25)
  • cover panel, anodized gloss finish (faceplate size L for DF-27)
  • cover panel, anodized gloss finish (faceplate size L for DF-17)
  • pair of original nut and pad for ALPS™ JAPAN fader
  • FLAT cable with JST 5PIN straight connectors
  • JST 2.0/PCB 5PIN 90° R angle connector
  • Vestax PCB mainboard for soldering
  • package contains 1 pc of KIT (1ch)
  • assembly instructions included



TECHNICAL PARAMETERS:

Type designed for mixing consolles Vestax PMC/PCV Series:
PMC-17A / PMC-170A / PMC-25 / PMC-27 /
PMC-27MK2 / PMC-250 / PMC-270A
PCV-175* / PCV-275* (*must be also original faceplate Vestax FP-175R / Vestax FP-275R or faceplate of these mixers needs to be mechanical adjusted)
Specification building KIT contains ALPS™ JAPAN rotary fader
nut & pad for ALPS™ JAPAN rotary fader
large ALU knob DF-500 Series
Vestax PCB mainboard
JST/PCB 5PIN 90°R angle connector
FLAT cable with JST 5PIN straight connectors
top cover panel (faceplate) - size M (only for DF-25)
top cover panel (faceplate) - size L (for DF-27, DF-17)
Design High Quality binary aluminium top cover panel, anodized gloss finish, color CHM
Connection JST/PCB 2.0 5PIN 90° R angle connector
FLAT cable with JST 5PIN straight connectors
Dimension 20 x 150 x 100 mm (incl. shipping box)
Weight 0,125 g (netto)
Accessories assembly instructions to wiring / building KIT



DOWNLOAD:

PDF soubor Tables of original spare parts & accessories Vestax (349 kB)
PDF soubor Tables compatibility CF, IF, PF, RF Vestax (1,85 MB)



PHOTOGALERY:



Currency Converter

You will immediately find out - how much you will pay. Enter the amount of the product price in the  EUR - € field  and you will get the conversion to your local currency. Current exchange rates by the ECB. Services provided by FreeCurrencyRates.com.

FreeCurrencyRates.com

Add comment

Name of the capital city of Japan?

The highlighted fields are mandatory.

Comments - Overview

  1. i need two (Márcio Paluma, 24 Jun 2022 21:04:00) Reply | Show replies

    I need two kits to replace on my pmc-25, whats the value to shipping to Brazil with tracking?

    1. Re: i need two (Vestax ADMIN, 27 Jun 2022 07:48:16) Reply

      Hello, yes we also send goods to Brazil. Key information on ordering can be found in the section “Shopping Guide”.

  2. PCV-275 (Rad, 11 Dec 2022 23:37:00) Reply

    Hi,

    Could you please tell me everything I need to convert my PCV-275 to rotary dials


    Thanks
