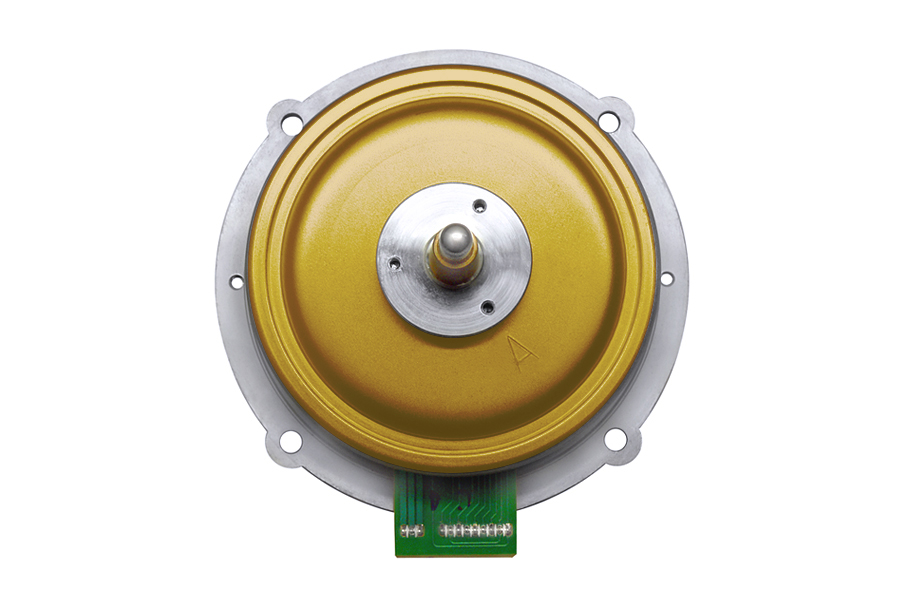

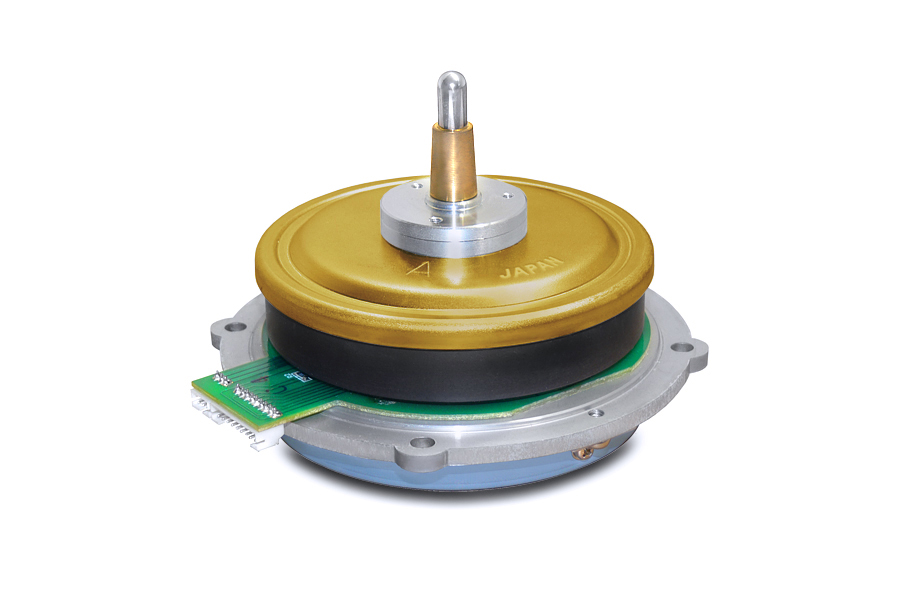

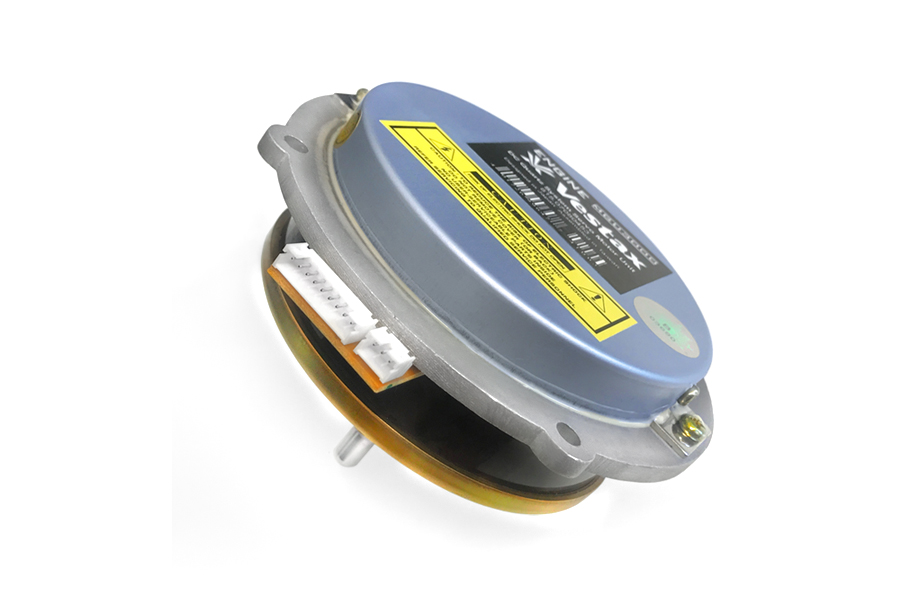

Vestax ENGINE MGU3000

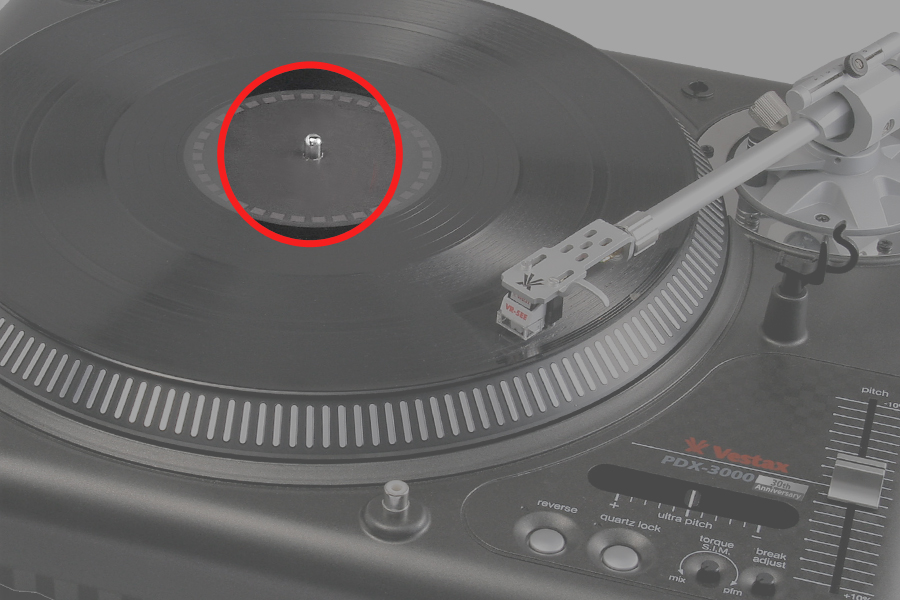

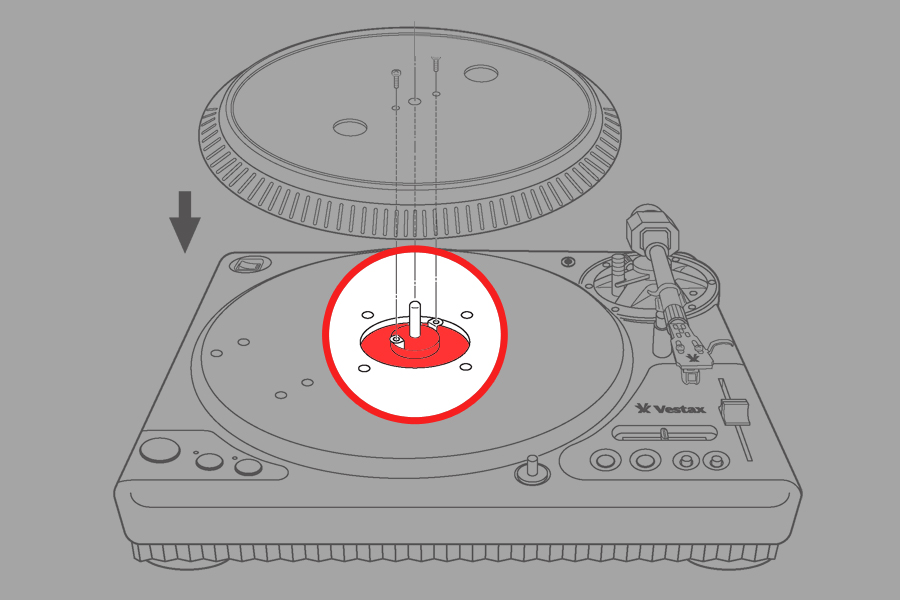

For the Vestax PDX-3000, PDX-3000MkII and PDX-3000 ANN Series turntables are equipped with a replacement engine block consisting of a DC servo and a DC Quartz System motor. Latest specifications (since 2012) compared to older versions (v.2000 and v.2005).

Code: VE891360010M01203

€ 319.00

Availability: at the supplier

PRODUCT DESCRIPTION:

For Vestax PDX-3000, PDX-3000MIX, PDX-3000MkII, PDX-3000 30ANN Series a Controller ONE Series turntables designed ENGINE MGU2000 replacement monoblock unit, composed of a DC servo and Direct Drive motor with Quartz System. Latest improved generation (specification 2012). Based on practical knowledge from previous versions of power units (v.2000, v.2005) was this specification improved with an emphasis on greater performance and reliability. Supplied separately without Vestax HP-PDX turntable holder (this must be ordered separately). The monoblock unit  is equipped with a PCB board with connectors for easy connection to turntable electronics.For use only by Vestax authorized repairers and authorized service centers. It is recommended to entrust replacement of the unit to specialists.

Tip: If you are unsure about your choice, consult our customer support before purchasing this part.

Notice: Our customers with valid (paid) pre-orders have priority when ordering this premium part.



KEY DESCRIPT:

• Vestax PDX-3000 Series a PDX-3000MkII Series a Controller ONE replacement turntable professional ENGINE monoblock / unit
• monoblock DC servo & DD motor with Quartz System, incl. PCB board with CN1 / CN2 MOLEX JTS connectors 2.0
• recommended for Vestax PDX-2000 Series, PDX-2300 Series and QFO Series turntables
• we highly recommend having the unit replaced by an authorized service center
• latest improved generation of PDX ENGINE unit (specification 2012 / V3.0)
• new high quality sensors by Citizen / Stanlay



TECHNICAL PARAMETERS:

Specification	Vestax PDX-3000 Series, PDX-3000MkII Series, Controller ONE Series turntables
Type	DC servo + motor DD Quartz System / PCB board with MOLEX connectors JTS
Connection	connectors CN1/CN2 MOLEX JTS 2.0
Fastening	4 screws M8 x 24 (metric thread)
Dimension M	ø 117 x 56 mm (motor DD Quartz Sytem)
Dimension S	ø 98 mm x 21 mm (DC servo)
Weight	1,35 kg (netto)
Accessories	assembly and wiring instructions



DOWNLOAD:

Vestax original parts - manual (0 kB)



PHOTOGALERY:
