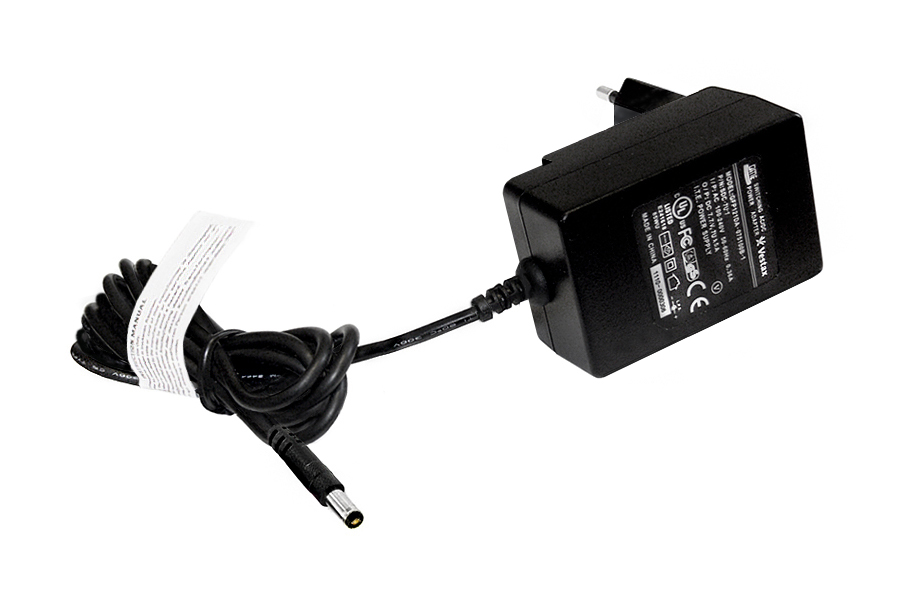

Vestax SDC-7X
PRODUCT DESCRIPTION:
Japanese Vestax has inspired knowledge in the past as well as some of the world's leading mixer manufacturers using separate power supplies for their products to achieve clear sound and eliminate any disturbances. Some expert opinions also state that a separate power supply provides better audiophile output sound quality or that it is easier for a consumer electronics equipped with a separate power supply to acquire a new adapter if a problem occurs due to a poor grid. Separate power supplies are no exception to Vestax. Especially with the Vestax mixers, this tradition is always maintained. Compact external power supplies for Vestax devices have sophisticated protection against short-circuit, overvoltage and overload or overheating. They allow long-term operation and thus contribute to the maximum reliability of the mixers. Of course, these power supplies comply with the ErP Directive and have a CE declaration; each source is provided with a safety marking according to CE, TÜV, cUL standards.
The largest external AC power supplies, the AC-20, are designed for the Vestax PMC Series professional mixers. The DC-15 or AC-14 / AC-12 power supplies are designed for smaller mixers or older mixer models. For CD players or especially for MIDI controllers, SDC series external power supplies are intended. For a complete overview of all Vestax power supplies, including their classification for a specific device, see the compatibility table for the specified spare parts; you can also download this information below in PDF files.
Use only recommended original Vestax power supplies. Use of others may damage the Vestax unit.
KEY FEATURES:
- for MIDI controllers VCI-400 Series, VCI-380 Series, VCI-300MkII, VCI-100MkII, VCI-100MkII
- 4 variants: EU pack / US extended pack / UK extended pack / AU extended pack
- elimination of any undesirable interference from mains sources
- for a cleaner sound and more space for instrument design
- easier source replacement in case of unexpected event
- compatibility with with some specific Vestax devices
- safety according to standards CE, TÜV, cUL, PSE
- extra accessories VE tape cable organizer
- Vestax Number factory G120120A43/2
- SC - Solid Core new construction
- RoHS compatibility
TECHNICAL PARAMETERS:
Input voltage | 115-230 V ~ 50/60 Hz |

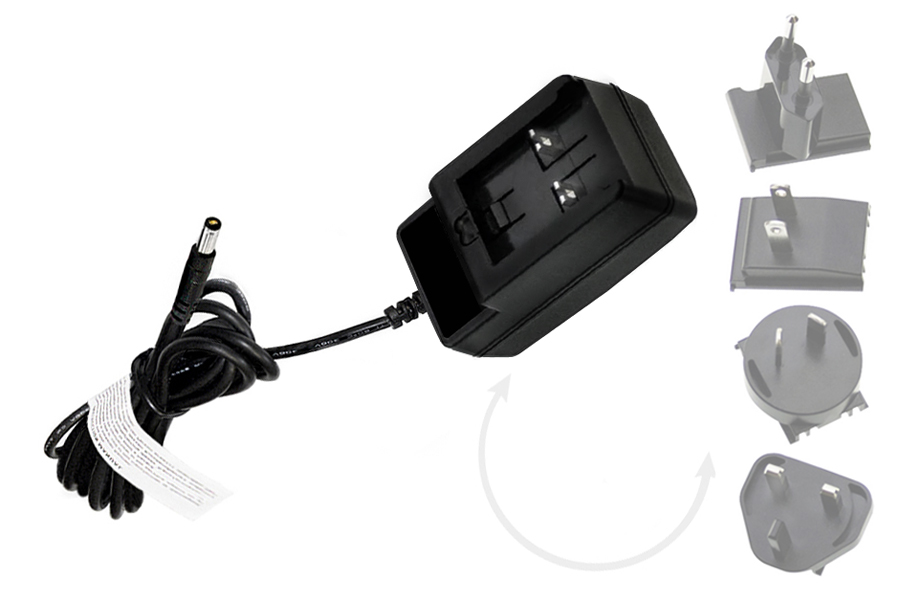

Specification | DC power adapter, electronically switched power supply, with interchangeable swivel fork (options: EU / US / AU) |
Output current | DC = direct current |
Power connector | Jack 55 / 22 |
Cable lenght | 1,5 m (low voltage part) |
Dimension | 60 x 43 x 35 mm |
Weight | 120 g (netto) |

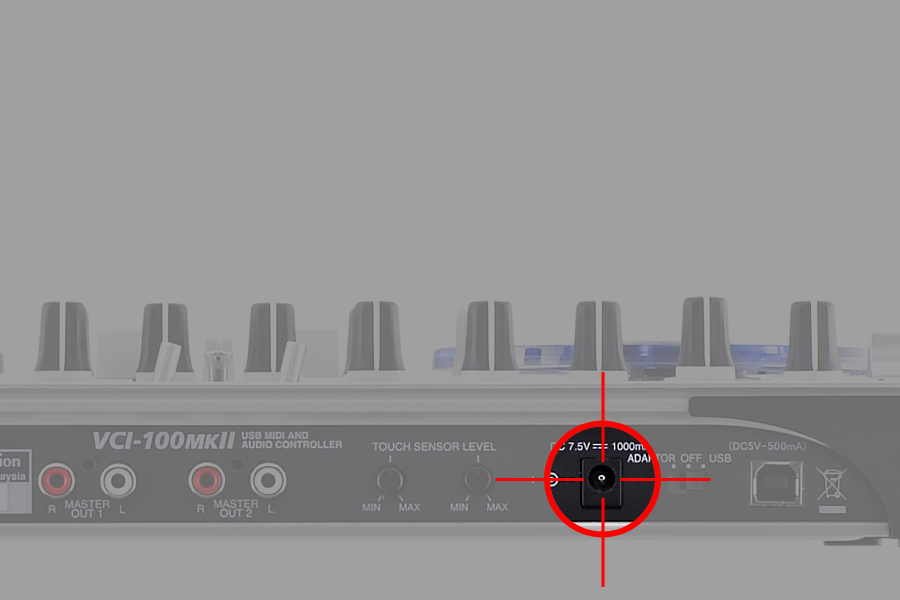

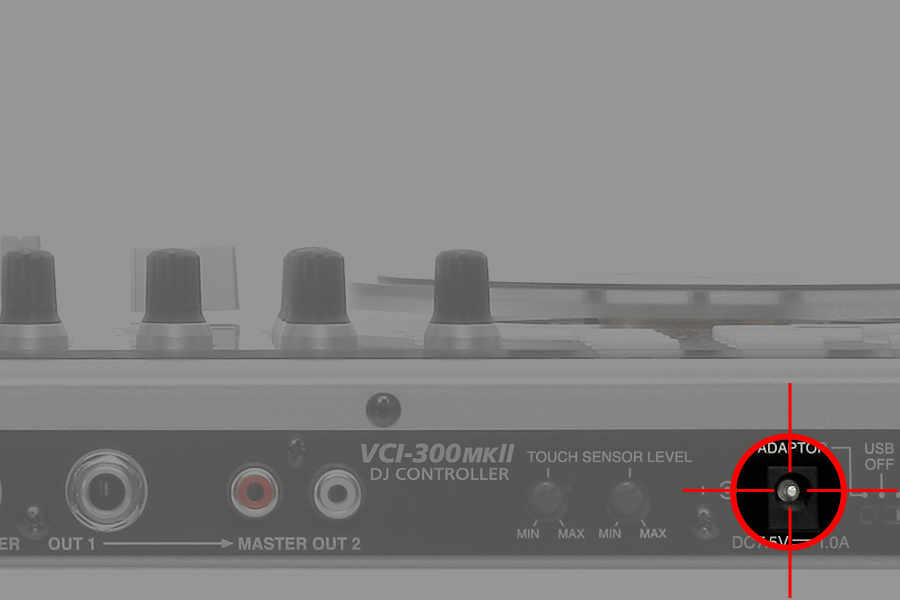

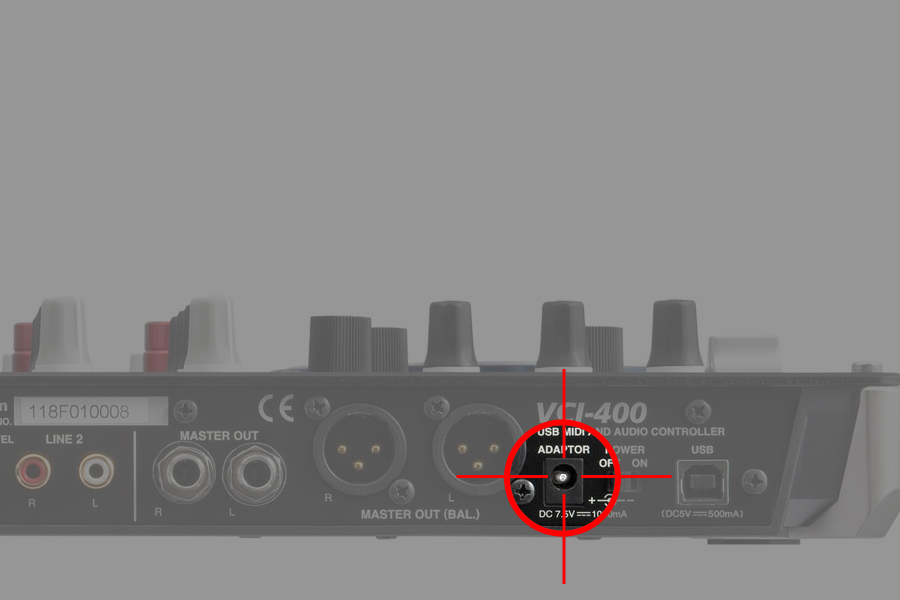

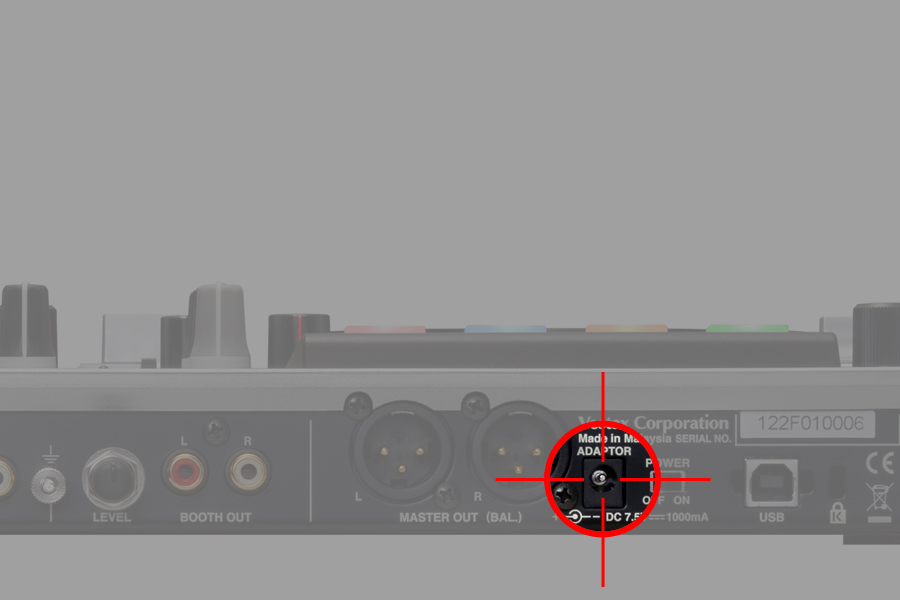

Use (by Vestax) | VCI-100MkII Series, VCI-300, VCI-300MkII, VCI-380 Series, VCI-400 Series |
Package incl. bonus | VE tape cable organizer |
DOWNLOAD:
Vestax power supply - user manual (1,5 MB)
Table of general spare parts Vestax (349 kB)
Table compatibility CF, IF, RF, PSU (1,85 MB)
