Vestax PDX-CTRL PCB ASSY

Vestax PDX-CTRL PCB ASSY

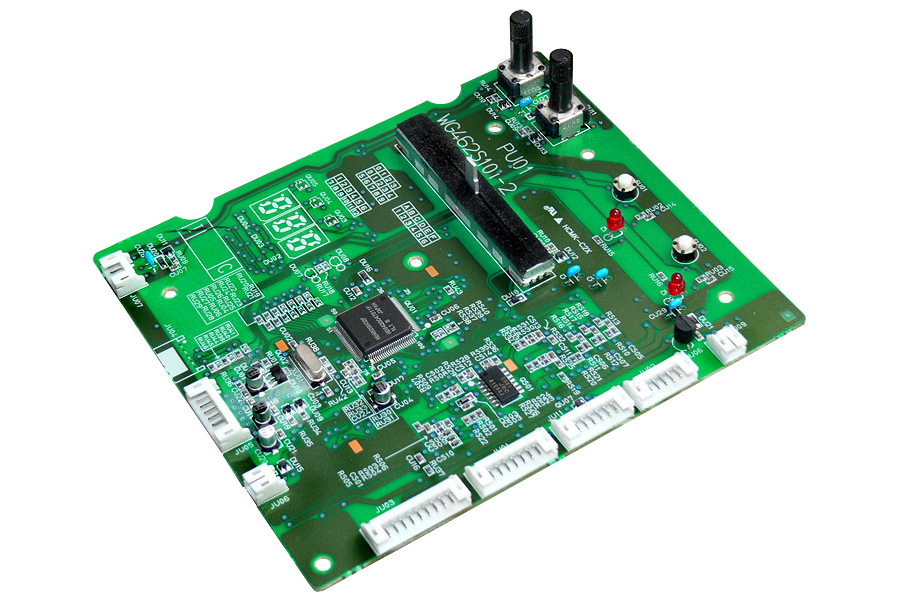

Basic Vestax factory assembled PCB models PDX-2000 / PDX-3000 turntable electronics, including several processors, equipped with Ultra Pitch Fader control, big LED display and LED indicators and Quartz Lock / Reverse buttons with Speed Adjustment Start / Break rotary faders controll.

Variants:
Code: VEP02000PU01
€ 179.00
Availability: in stock

 Original Japan  Originální náhradní díly  Doporučeno využít autoriz.servis   ENGLISH DATASHEET

PRODUCT DESCRIPTION:

Basic mounted PCB board for control electronics of Vestax turntables of the PDX-2000 / PDX-3000 series, equipped with Ultra Pitch Fader control, LED indicators and Quartz Lock / Reverse buttons and Speed ​​Adjustment Start / Break rotary faders. MB-2000 PU01 is factory equipped with main processor HD6433047 and auxiliary processors A1098J, the board has a 45mm ultrapitch fader with a range of ± 50%, two rotating faders for electronic motor torque control and torque adjustment of the electric turntable turntable and two low-lift buttons MICRO type for reversing motor control with LED indication and constant speed locking (Quartz Lock) with LED indication. The connection board is equipped with DPA / PHOENIX connectors for easy connection with other components of the turntable electronics. A PCB board with a pull-up 100 mm linear pitch fader ± 10% can be purchased separately (not included in the delivery!). Warning: if you are unsure, have the control electronics of your turntable replaced by a specialist garage.

infoidea Tip: if you are unsure of your choice, consult our technical support before purchasing.



KEY FEATURES:

  • various modifications of the motherboards of electronics for individual types of Vestax PDX Series turntables
  • WG462S101xx PU01 - original motherboard / control electronics for Vestax PDX-2000 Series
  • WG22AZ101xx PU01 - original motherboard / control electronics for Vestax PDX-2000 Pro / PDX-3000 Series
  • WG12AZ101xx PU01 - original motherboard / control electronics for Vestax PDX-2300 Pro MkII Series
  • WG462S101xx / WG22AZ101xx contain control electronics with processors, Ultra Pitch Fader, 2 rotary faders, 2 switch
  • WG12AZ101xx contain control electronics with processors, Ultra Pitch Fader, 2 rotary faders, 1 switch, 4D joystick
  • original Vestax motherboards are completely equipped with DPA / JST / MOLEX / PHOENIX connectors
  • compatible with Vestax turntables PDX series 2000 and PDX series 3000
  • NOTICE: motherboard is not user easy replaceable hardware KIT



TECHNICAL PARAMETERS:

Specification 1 complete assembled motherboard / control electronics for PDX-2000 Series
Specification 2 complete assembled motherboard / control electronics for PDX-2300Pro MkII Series (*)
Specification 3 complete assembled motherboard / control electronics for PDX-2000 Pro / 2000Pro MkII / 3000 Series
Ctrl elements 1 START - engine torque / acceleration speed
Ctrl elements 2 BREAK - setting the torque of the electric brake
Ctrl elements 3 REVERSE - switches to reverse speed (neg. RPM)
Ctrl elements 4 QUARTZ LOCK - locking constant RPM
Ctrl elements 5 4D JOYSTICK - Pitch Bend & Ultra Shift * (only spec.2)
Ultrapitch ±50%
Power internal via PSU PDX-2000 / 3000
Connectors 8x mounting DPA / JST / MOLEX / PHOENIX
Dimension 124 x 138 x 26 mm
Weight 280 g netto (approx.)



DOWNLOAD:

PDF soubor Vestax TMB-2000 - control electronics manual (483 kB)



PHOTOGALERY:
