Vestax UPF-3000 SSF

Vestax UPF-3000 SSF

Original Japan factory replacement ultra-pitch fader SSF for extended speed control ± 50% RPM for PDX-2000/3000 Series turntables. Short VR slide fader designed for service replacement on the PCB board UPF module.

Code: PD03WG12AZ102-1
€ 39.90
Availability: in stock

 Originální náhradní díly  Doporučeno využít autoriz.servis  Original Japan   ENGLISH DATASHEET

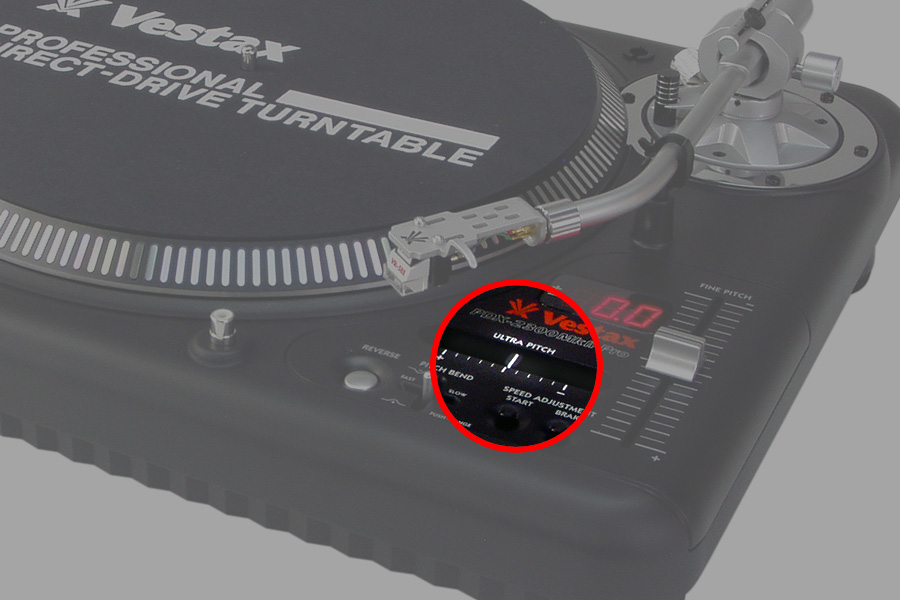

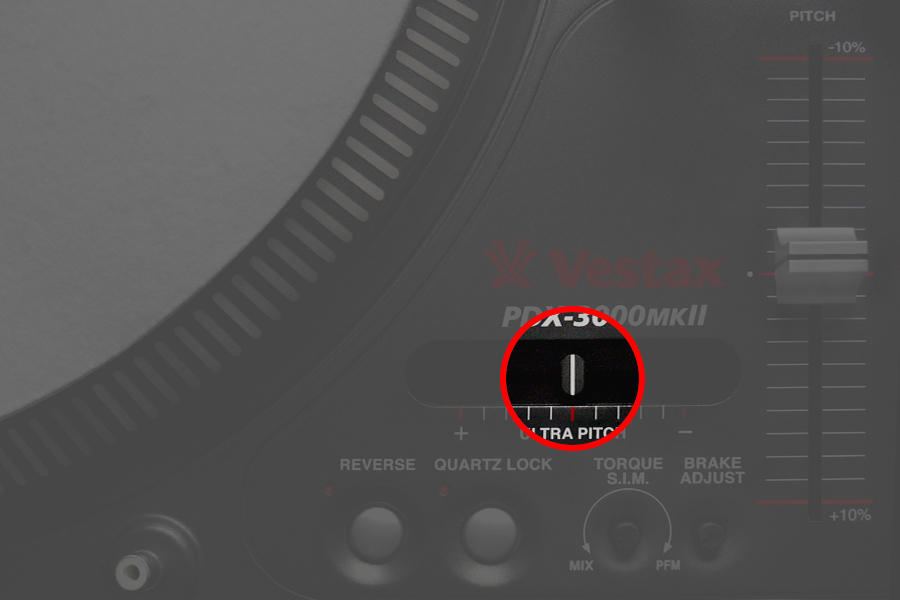

For the Vestax PDX-2000/3000 Series turntables are equipped with an extra ultra pitch fader for enhanced turntable speed control of ± 50%. Ultra pitch fader is supplied without PCB board (SSF - separate slide fader). With this model, the factory-fitted version with PCB board and Molex PSB connectors can be ordered for easy user replacement only when ordering the entire control complete electronics control board. When replacing the UPF-PDX3000 SSF, it is necessary to first desolder the original ultra pitch fader from the control circuit board and then power the new one. Only for Vestax authorized repairers and authorized service centers.

infoidea Note: If you are unsure of your choice, please consult our customer support before purchasing.

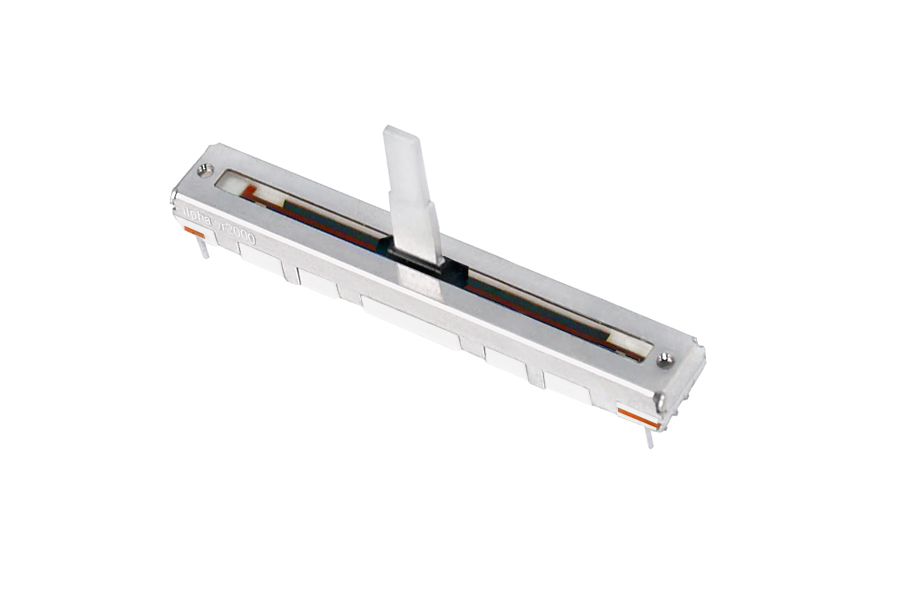

  • replaceable original 45 mm ultra pitch fader for extended turntable speed control ± 50%
  • separate VR slide ultra pitch fader for soldering on PCB motherboard
  • designed for turntables Vestax PDX-2000 / PDX-3000 Series
  • fader supplied without V-COAT velvet protective aprons
  • we recommend a professional service for installation



Specification PDX-2000, PDX-2000MkII, PDX-2000MkII Pro, PDX-2300, PDX-2300MkII, PDX-2300MkII Pro, PDX-3000, PDX-3000MkII, PDX-3000 30th ANN, Controller ONE
Descript separate VR SSF 45 mm fader / version without PCB board and V-COAT
Dimension efective range 45 mm / 59 x 11,5 x 10 mm
Weight 12 g (netto)



PDF soubor Table of general original spare parts Vestax (349 kB)
PDF soubor Table of compatibility CF, IF, PF, DF Vestax (1,85 MB)
