Vestax VAI-40 (d)

Vestax VAI-40 (d)

Professional USB sound card allows multi-channel recording with high sound quality. 4 mono / 2 stereo inputs and outputs. It is compatible with professional DAW and DJ software. Easy to operate. Compact metal chassis. Advantageous only for collectors!

Code: 4516184215063
€ 206.10 € 229.00
Availability: in stock 1 pc

 Original Japan  Exkluzivní limitovaná edice  picto_top-produkt.png  EXCLUSIVE SALE
Currency Rates Today
1 $ CZK


Advantageous only for collectors! The Vestax VAI-40 CE USB sound card (collectors edition) is a small portable and durable sound card that provides everything you need for professional music production, as well as for use with standard recording and playback features. The VAI-40 is characterized by a compact, durable all-metal aluminum chassis. No plastics. The VAI-40 has the ambition of defeating compact professional sound cards especially in live applications due to its robust design and durability. Everything has been designed with the emphasis on maximum simplicity, functionality, reliability and ease of use. view full description »

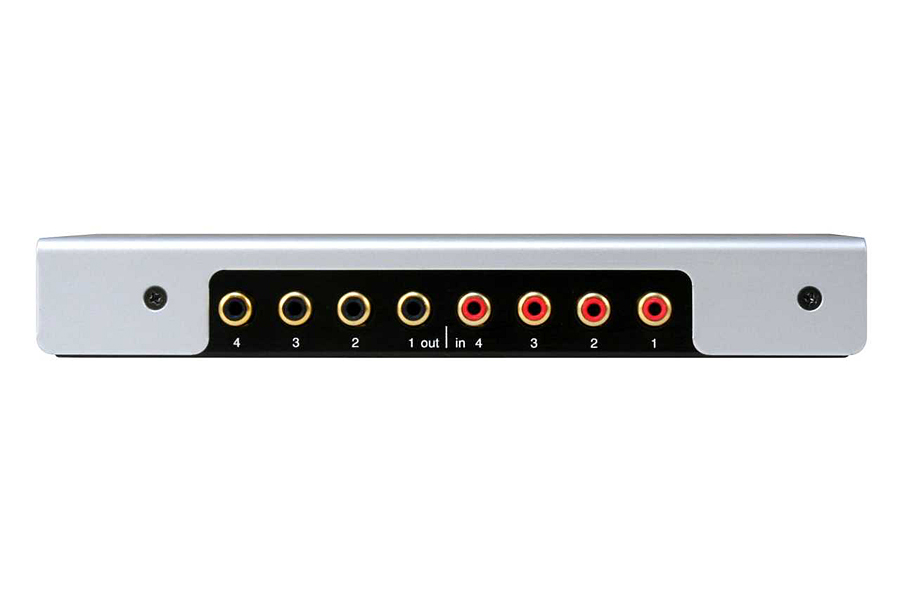

It is equipped with 4 analog mono inputs (RCA) and 4 analog mono outputs (RCA) that can operate as 2 stereo input channels and 2 stereo output channels. A stereo TRS 6.3 connector is available for listening to headphones. High-quality audio is ensured by the delta-sigma precision AD / DA converters 20bit stereo D / A and 18bit stereo A / D. For the best work with this sound card, an ASIO driver designed by the renowned ESI (Ego Systems Inc.) has been used and has proven quality by professionals. Supports ASIO 2.0 (Windows), MME / WDM (Windows) and CoreAudio (Mac OS X). DAW application software and DJ application software work with this driver with very low latency while maintaining high performance digital analog signal processing and vice versa in AD / DA converters and data transmission.

The VAI-40 sound card is a high quality solution for home studios or field recording. It does not need any additional power, it only works with power from a computer USB port (USB spec. Vers. 1.1, USB audio class spec. Vers. 1.0). Compatibility is guaranteed with virtually any PC or MAC. Of course there is support for ASIO 2.0, respectively. CoreAudio standard. The VAI-40 is compatible with almost any software such as Cubase, Logic, Reason, Nuendo, MixVibes, Traktor DJ Studio, WaveLab, etc. especially in live productions and do not like cheap plastic boxes. The compact all-metal chassis VAI-40 and technical specifications will surely satisfy any user.



  • 4 mono / 2 stereo unbalanced inputs (RCA)
  • 4 mono / 2 stereo unbalanced inputs (RCA)
  • AD convertor 18bit/48kHz, 85 dBA, 20 Hz ~ 20 kHz
  • DA convertor Delta-Sigma 20bit/48kHz, 87 dBA, 20 Hz ~ 20 kHz
  • support ASIO 2.0 (Windows), MME/WDM (Windows), CoreAudio (Mac OS X)
  • compatibility with SW Cubase, Logic, Reason, Nuendo, MixVibes, Traktor, WaveLab
  • robust all-metal construction of aluminum chassis
  • headphone output stereo terminal TRS 6,3
  • digital interface USB 1.0 or higher



Inputs 4x LINE mono (RCA) unbalanced -10 dBV / 10 kΩ
Outputs 4x LINE mono (RCA) unbalanced -10 dBV / 100 Ω
1x HEADPHONES (TRS 6,3) 60 mW / S-NR 110 dB
Convertors AD 18bit/48kHz 85 dBA, 20 Hz ~ 20 kHz,
DA Delta-Sigma 20bit/48kHz, 87 dBA, 20 Hz ~ 20 kHz
Interface USB 1.0 or higher
Power supply 5 V (250 mA) / USB
Drivers support ASIO 2.0 a MME/WDM (Windows), CoreAudio (Mac OS X)
Dimension 72 x 206 x 30 mm
Weight 0,7 kg (netto)
Accessories USB cable, install CD-ROM (ESI drivers)



Operation system Mac OS X 10.6 Win7 (SP1, 32bit / 64bit)
Vista (SP1, 32bit / 64bit)
XP (SP1, jen 32bit)
Procesor G3 Intel Pentium lll 600MHz
RAM 256MB 256MB
USB port 1.0 1.0
Notice for Vista / Win7 the latest ESI driver required, for OS 10.6 (Snow Leopard) it is necessary to use Mac SW Rosetta, OS X 10.7 t.no. does not support
These are the minimum requirements for a computer connected to the device described. For best results and professional use, the manufacturer always recommends using a higher computer specification than shown here.



USER MANUALVestax VAI-40 CE - user manual
