Vestax VK-2300Pro KIT

PRODUCT DESCRIPTION:

The Vestax VK-2300Pro KIT mounting hardware is designed to upgrade the Vestax PDX-2000 Series turntable controls to a more modern version, featuring better controls, than the legendary Vestax PDX-2300 Series turntables. Enhanced pitch control, fast and accurate beat matching adjustment with a 100mm ± 10% fine pitch fader. Ultra pitch control with a ± 50% control fader on board. Combined the total amount you can adjust the pitch by is a huge ± 60% pitch. Furthermore, with the pitch bend joystick, you can quickly push or pull the pitch for smooth mixers or dynamic effects. Digital Pitch Display large format showing the current pitch setting, allows you to accurately set the pitch or when needed to, make adjustments perfectly.

The Vestax VK-2300Pro KIT includes original basic parts to upgrade your PDX-2000 Series turntable. The VK-2300Pro KIT includes a PCB motherboard incl. several Japanese CPU´s with control electronics that features a 4-D joystick (Pitch Bend & Ultra Shift) to promptly correct pitch settings in steps of ± 1%, ± 2%, ± 3%, ± 6%, or instantly ± 50 %. There is also a 45mm ± 50% ultrapitch fader and two rotating soft faders with electronic engine torque control and turntable torque adjustment, as well as an engine reverse button with LED indication. In addition, the KIT contains big alphanumeric three-digit LED display, which indicates the instantaneous pitch value with the accuracy of one decimal place or the selected turntable turntable. Together standart fine pitch ± 10% RPM plus ultra pitch control can be adjusted RPM to ± 60%. The VK-2300Pro KIT also features set of electronic components (resistors) and original silver-coated printed panel with holes for tension faders (fitted with anti-dust screens) rotary potentiometers and joystick Pitch Bend. The opening for the LED display is fitted with a protective acrylic red glass. Fine pitch fader not included in this version - if you want also to replace PF during the upgrade, you must order it separately. However replacing the PF is not a condition for proper operation of the VK-2300 Pro KIT upgrade.

Tip: if you are unsure of your choice, consult our technical support before purchasing.

KEY FEATURES:

HW KIT designed to upgrade Vestax PDX-2000 Series turntable controls to a more modern version of the PDX-2300 Series
contains main PCB motherboards with electronics, two micro switches, ultra pitch fader and 4-D joystick

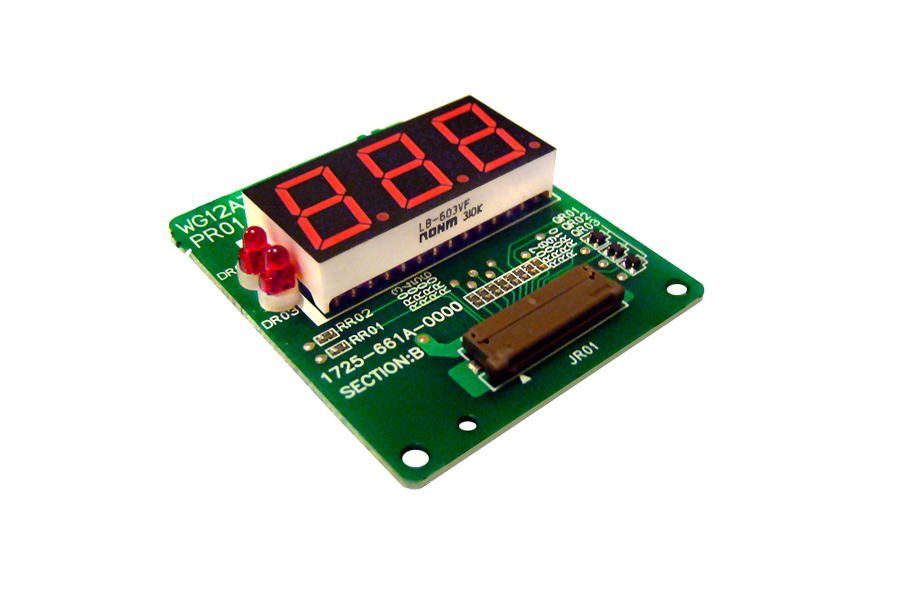

alphanumeric three-digit LED display showing the current pitch value of RPM or selected speed
4-D joystick (Pitch Bend & Ultra Shift) to correct pitch control ± 1% to ± 6%
45mm ALPS ultrapitch fader ± 50% (fitted on motheboard)
overall pitch control level change RPM up to ± 60%
including set of electronic components (resistors)
compatible with all Vestax PDX 2000 Series
contains detailed assembly instructions

TECHNICAL PARAMETERS:

Specification	HW KIT for assembly to PDX-2000 Series (viz assy.manual)
Regulation 1	engine torque / acceleration speed
Regulation 2	setting point shot torque electric brakes
Pitch	±10% / fader 100 mm (not included)
Ultrapitch	±50% / fader 45 mm fitted on motherboard
Pitch Bend / Ultra Shift	steps ±1% / ±2% / ±3% / ±6%
Controll Pitch Bend / Ultra Shift	4D joystick
Power	internal by power source of PDX-2000
Connectors	integrated Phoenix / JTS / P2
Dimension	124 x 138 x 26 mm
Weight	320 g
Package contents	motherboard, LED display PCB, set of resistors, PDX-2300 faceplate, installation manual, user manual

DOWNLOAD:

Vestax VK-2300Pro KIT - primary user manual (1,70 MB)
Vestax VK-2300Pro KIT - assembly brochure (100 kB)

PHOTOGALERY:

Vestax VK-2300Pro KIT (detail of main board with CPU´s)

Vestax VK-2300Pro KIT (application - before upgrade PDX-2000)

Vestax VK-2300Pro KIT (application - after upgrade PDX-2000)

Vestax VK-2300Pro KIT (application like PDX-2300MkII Pro)
