Vestax DF-25 Pro KIT

Replacement original Japan DF-25 Pro KIT new series v2 for professional mixers PMC-25 / PMC-250 Series . KIT with 1 rotating channel faders consists of high quality ALPS™ Japan rotary fader and top cover panel with large aluminum knobs. They are suitable for some characters and styles of music mixing.

Code: 4516184250347

$ 97.00

Availability: in stock

PRODUCT DESCRIPTION:

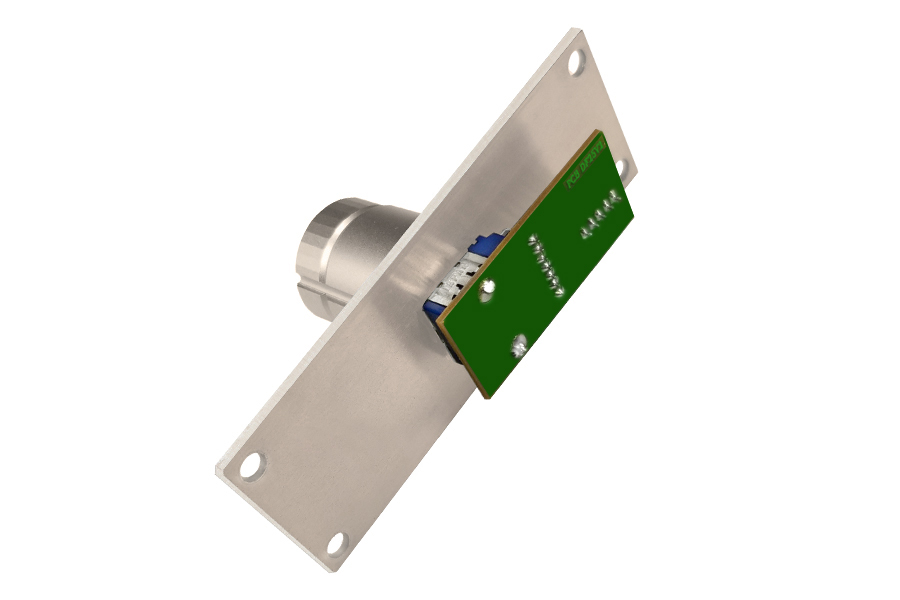

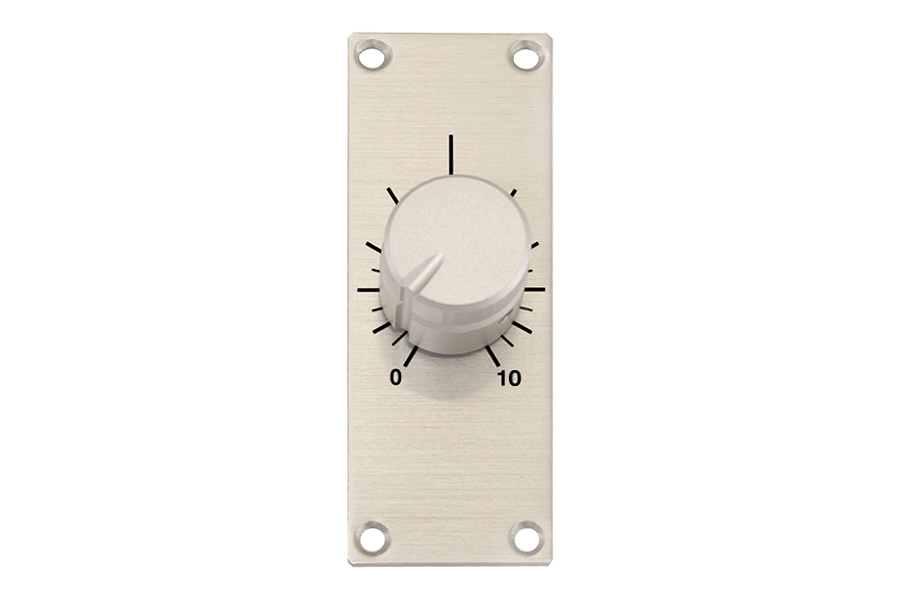

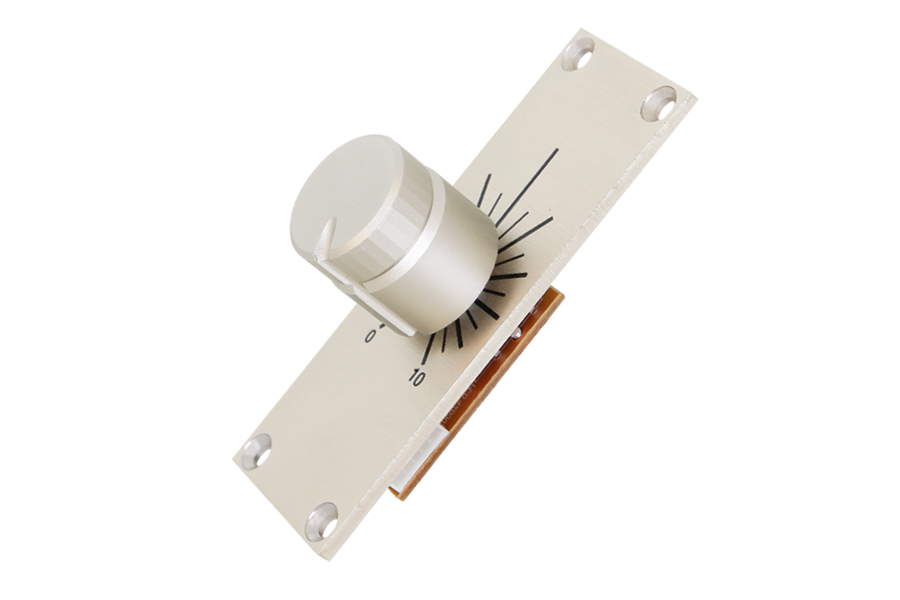

Vestax DF-25 Pro KIT new series v2 are replacement ALPS™ rotary input faders completely mounted on a PCB board with MOLEX / JST connectors with a top cover panel and it is equipped large aluminum knobs with marked line (groove) to fit the mixers PMC-25 / PMC-250 Series (KIT incl. 1 channel HQ rotary fader). Rotary fader are supplied as KIT assembled. They are designed for easy user replacement instead of original factory INPUT CHANNEL SLIDE FADERS. They are suitable for some characters and styles of music mixing.

N O T I C E:  For specialized service repairs we have on sale PART versions - small service for Vestax DF-25 Pro KIT. They are factory assembled PCBs desk with original ALPS Japan rotary potentiometers and MOLEX/JST connectors for quick connection on the mixers mainboard, fitted like DF-25 Pro KIT. Type named Vestax SRF-309G ALPS. For purchase original rotary knob for DF KIT you must go to the "Knobs and Buttons section. Top cover panels (TCP) are made exactly to measure! To do this, it is necessary to provide data to verify the dimensions of a particular mixing console,  where the KIT will be installed. Without this information, 100% TCP compatibility cannot be guaranteed.

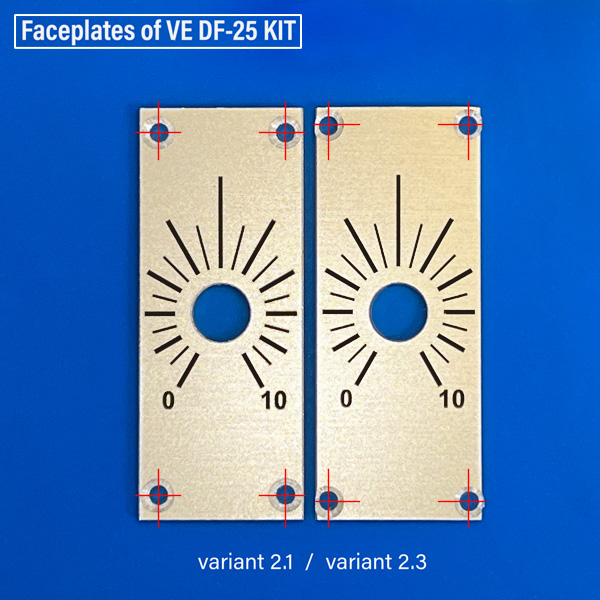

TECH NOTE: there are two of variants of PMC-25 Series mixers with FP with different spacing of the mounting holes for attaching the faceplates from DF-25 KIT (exchange for Input fader IF-25) Before ordering, we highly recommend consulting with technical support about which type of faceplates for DF-25 KIT you need in ordered package.

Tip: If you're not sure about the right choice, consult our customer support before your purchasing.

 NOTICE: This premium product is manufactured and assembled manually only to order.



KEY FEATURES:

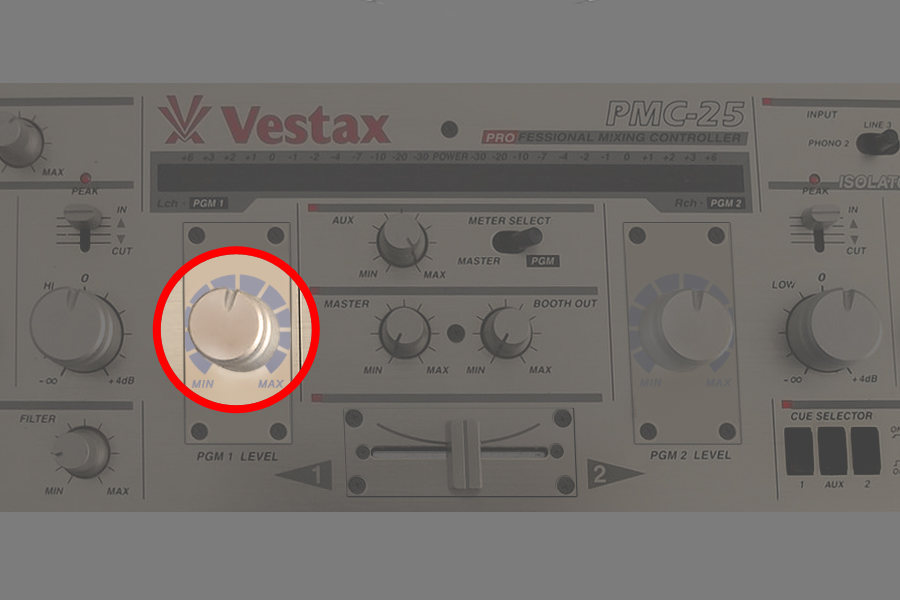

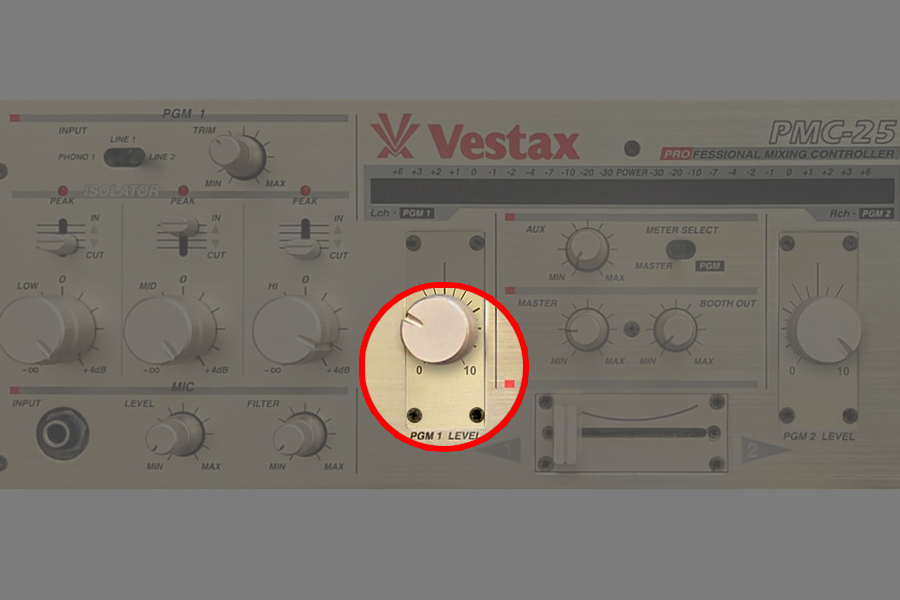

• replacement rotary 1-channel fader KIT, for PMC-25 / PMC-25MkII / PMC-250 Series
• precise quality and top performance of Vestax ALPS™ JAPAN  professional faders

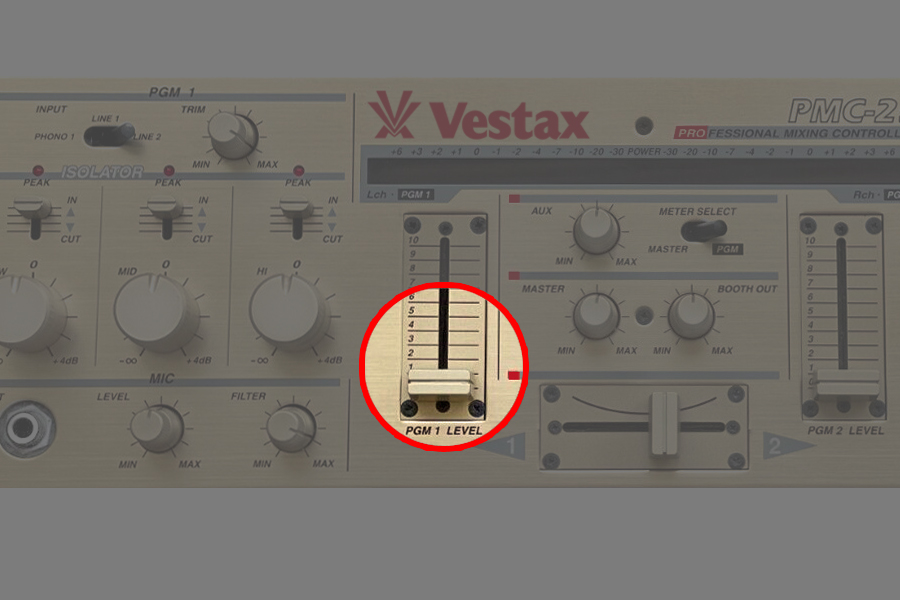

• serves as a replacement for the factory slide fader fitted to the mixers listed above
• user replacement with built-in MOLEX / JST connectors on PCB mainboard
• it is equipped large aluminum knobs with marked line (groove)
• top cover panels may differ by printed colored lines*
• top cover panels are made exactly to measure
• v2 is limited handmade custom series 2020

• package contains 1 pc of KIT (1 ch)



TECHNICAL PARAMETERS:

Type	DF-25 Pro KIT designed for mixing consolles Vestax PMC-25/ PMC-25MkII / PMC-250 Series
Specification	ALPS™ Japan rotary faders mounted on KIT, incl. large aluminium knobs DF-500 FXS
Design	High Quality binary aluminium top cover panel, anodized gloss finish, color CHM
Connection	JST 2.0 connectors on PCB´s  for connecting via cables
Dimension	45 x 112 x 98 mm (incl. shipping box)
Weight	0,125 g (btto)
Accessories	4 pcs screws M3, instructions to wiring



DOWNLOAD:

Tables of original spare parts & accessories Vestax (349 kB)
Tables compatibility CF, IF, PF, RF Vestax (1,85 MB)



PHOTOGALERY:
