Vestax PF-2000 SSF

Vestax PF-2000 SSF

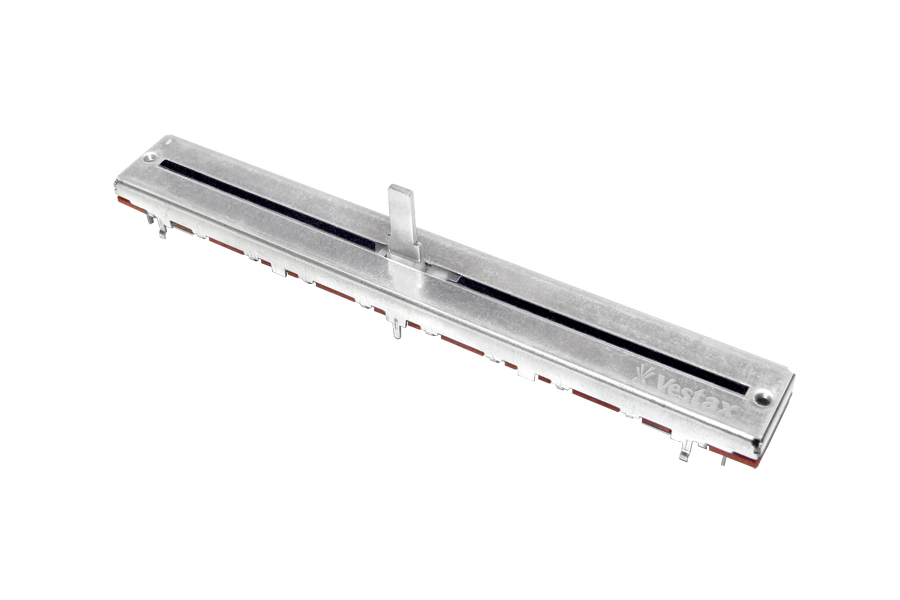

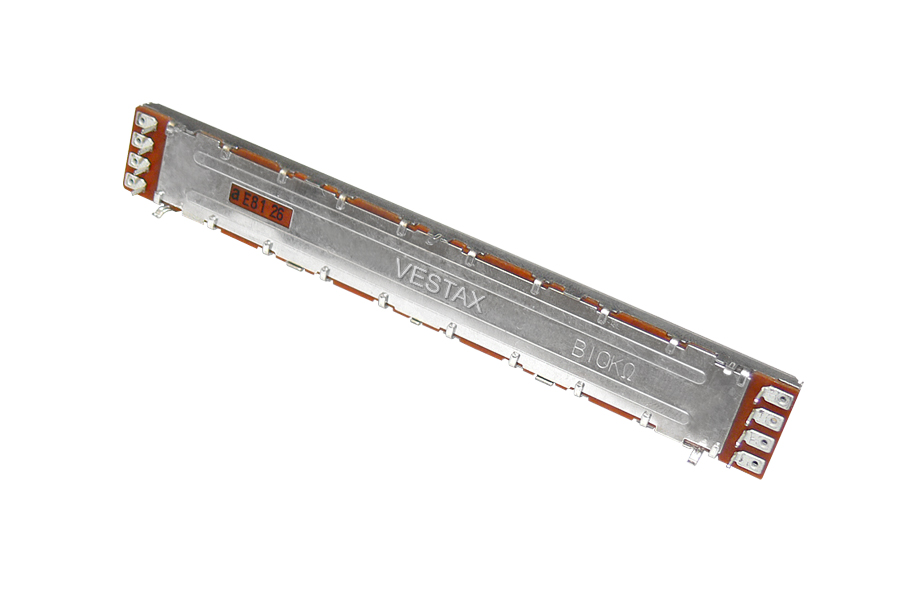

Original Japan factory replacement pitch fader SSF for basic speed control for PDX-2000 Series turntables or PDX A1/D3 Series turntables or vintage model PDT-5000. Factory ALPS Japan VR slide fader designed for service replacement on the PCB board PF module.

Variants:
Code: WG462S101-PDX2000
€ 59.70
Availability: sold out

 Originální náhradní díly  Doporučeno využít autoriz.servis  Original Japan

PRODUCT DESCRIPTION:

The Vestax PDX-2000 Series turntables and older PDX-D3 Series / PDX-A1, PDX-A2 Series turntables or PDT-5000 replacement ALPS™ Japan VR slide fader are designed for basic speed control via pitch fader ± 10% RPM. Pitch fader is supplied without PCB for soldering (SSF - separate slide fader; factory-fitted, pitch fader with PCB board and JST / Molex PSB connector for easy user replacement and quick connection can be ordered like KIT). For this service-designed variant, it is necessary to desolder the original pitch fader from the printed circuit board and supply a new piece to it. For use only by Vestax authorized repairers and authorized service centers.

Consumer warnings: non-original plagiaries of these spare parts have appeared on the market, which are imitations of Vestax Professional Parts Japan and whose quality and durability are significantly many times lower. To avoid problems with your device, purchase only from authorized dealers or our Vestax Japan Megastore.

infoidea Notice: If you are unsure of your choice, please consult our customer support before purchasing.



KEY FEATURES:

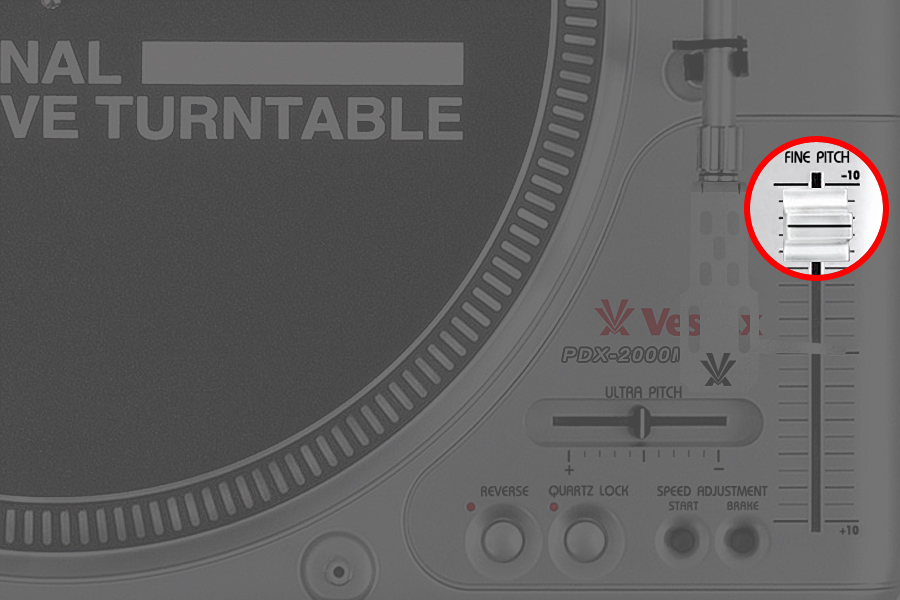

  • replacement ALPS™ 100mm pitch fader for basic turntable speed control ± 10% RPM (fine pitch controll)
  • replacement by soldering on PCB (with fitted DPS/JST/MOLEX connector), accurate compatibility
  • specification 2000, top quality Made in Japan for turntables PDX-2000 Series
  • specification 00A1, top quality Made in Japan for turntables PDX-A1 / A2 Series
  • specification 00D3, top quality Made in Japan for turntables PDX-D3 Series
  • specification PDT5, top quality Made in Japan for turntables PDT-5000
  • single slide fader (SSF type) without PCB module and dusters
  • we recommend a professional service for installation



TECHNICAL PARAMETERS:

Specification PDX-2000, PDX-2000MkII, PDX-2000MkII Pro, PDX-2300, PDX-2300MkII, PDX-2300MkII Pro
Specification PDX-A1, PDX-A1MkII, PDXA2, PDX-A2MkII, PDX-A2S
Specification PDX-D3, PDX-D3MkII, PDX-D3S, PDT-5000
Material separate SSF 100 mm slider / for specification 1, 2, 3 / without PCB board for soldering
Dimension efective range 100 mm / 119 x 17,5 x 11 mm
Weight 25 g (netto)



DOWNLOAD:

PDF soubor Vestax original parts - manual (349 kB)



PHOTOGALERY:



Currency Converter

You will immediately find out - how much you will pay. Enter the amount of the product price in the  USD / EUR - $ / €  field and you will get the conversion to your local currency. This services provided by FreeCurrencyRates.com.

FreeCurrencyRates.com

Add comment

Name of Japan's highest mountain?

The highlighted fields are mandatory.

Comments - Overview

  1. Exchange at PDX-8000 (Radek Jirman, 17 Mar 2018 19:39:00) Reply | Show replies

    Hello, I need to replace the pitch fader on the PDX-8000 turntable, according to the picture it looks like the same fader is there, but you don't have it in the list here. Can you advise? Thank you.

    1. Re: Exchange at PDX-8000 (ADMIN, 18 Mar 2018 11:40:00) Reply

      This type of pitch fader can also be used for the PDX-8000 turntable.

    2. Pitch faders for PDX d3s mk2 (Karl Roberts, 28 Mar 2024 13:15:21) Reply

      Hi, I desperately need 2 new pitch faders, will you ever be supplying as I've been waiting and watching your website but still none in stock :(

      1. Re: Pitch faders for PDX d3s mk2 (Vestax, 31 Mar 2024 18:22:32) Reply

        Part was sold out. The first date (restocking) is moved to August. The PF-2000s are not currently available and are being worked on to reintroduce production. On stock we have new type of PF-2000 KITv4, which, however, requires modification of the removable part of the turntable faceplate! It is mainly intended for very experienced users.
